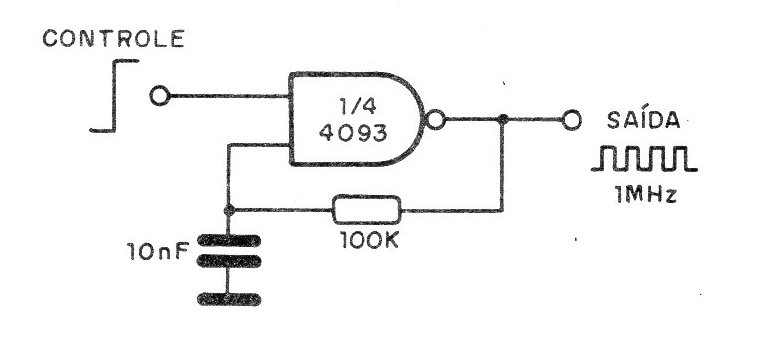

When the control level is increased from 0 to 1 (LO to HI), this circuit is activated, which oscillates at a frequency around 1 MHz. For other frequencies, simply change the capacitor value. The waveform of the output signal is rectangular and the other 4093 gates can be used for other applications.
