Five Transistor Superherodyne Receiver (CB960E)

Details
Written by: Newton C. Braga

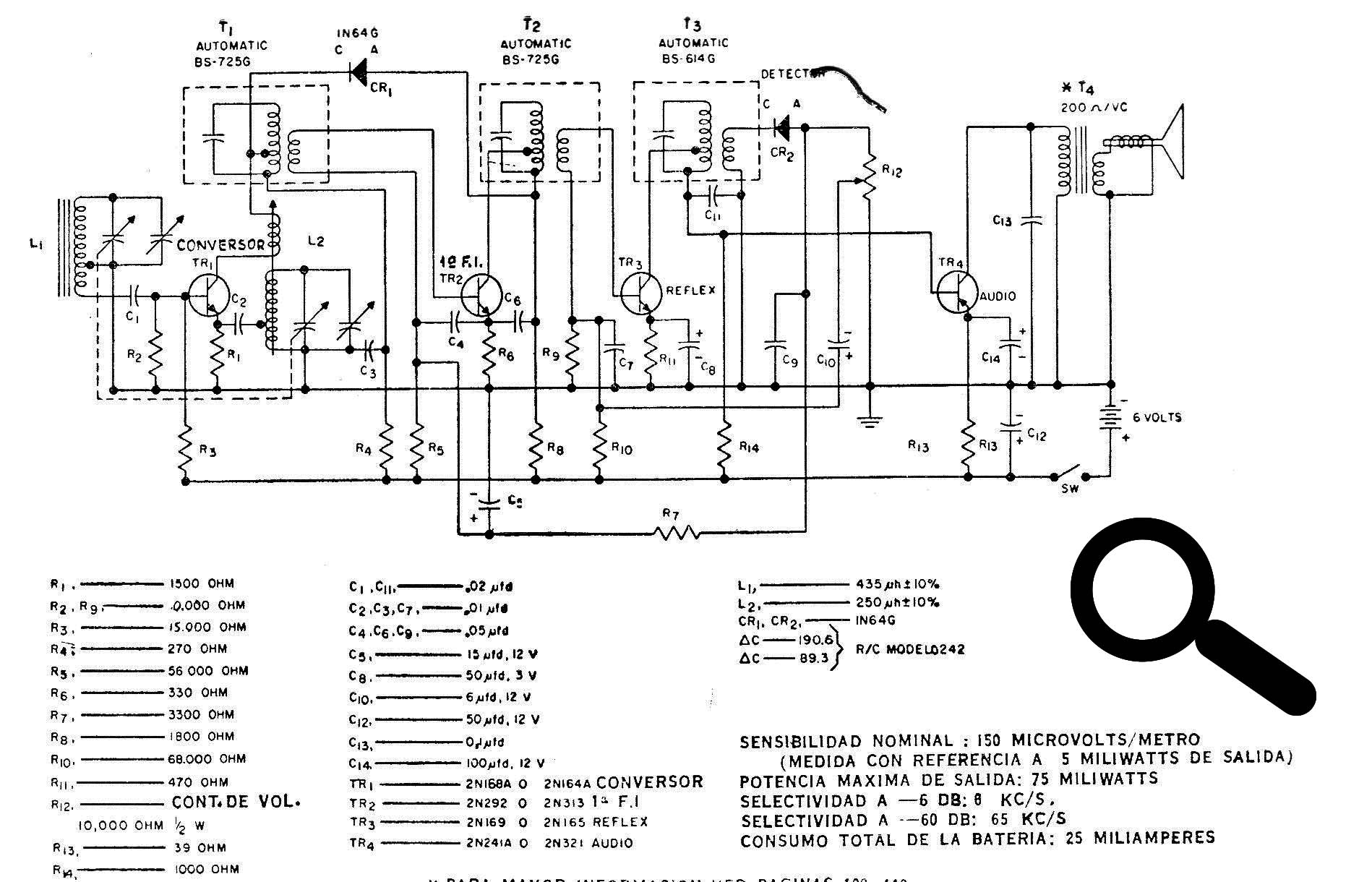

This is a commercial circuit from the year 1958. Transistors are germanium types and transformers and coils are hard to fild today. The circuit is destinated to the reception of medium wave stations.
