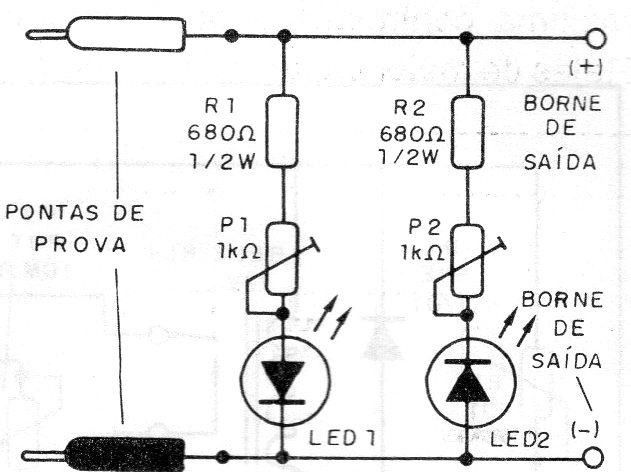

This simple polarity indicator for continuous voltages can operate with voltages from 3 to 15 V with the brightness of the LEDs adjusted in the trimpots (optional). The circuit can have fixed operation or operate as a bench instrument using probes.
Polarity Indicator (CB16729E)
- Details
- Written by: Newton C. Braga
