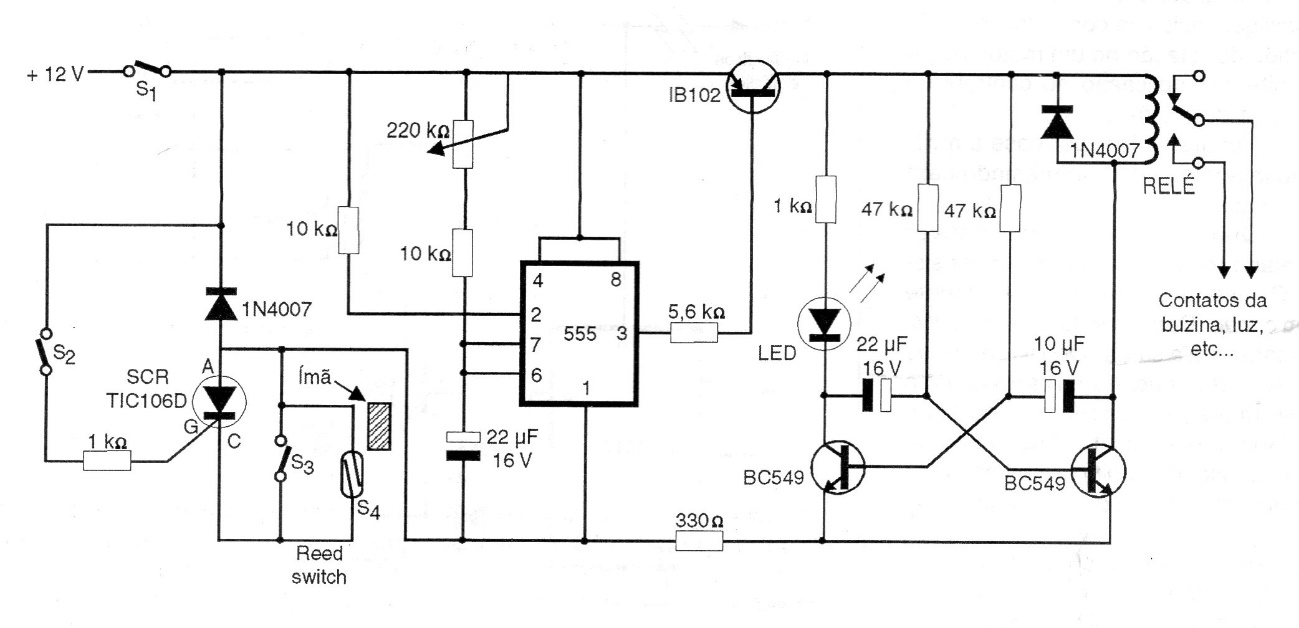

This circuit was obtained from a 1997 publication. It is an alarm that has a lock and a bistable action given by a flip-flop. The circuit must be powered by 12 V which is the voltage used and the function of the reed-switch and the switch in parallel with it is to perform the reset.
