Differential Phase Inverter (CB967E)

Details: Written by: Newton C. Braga

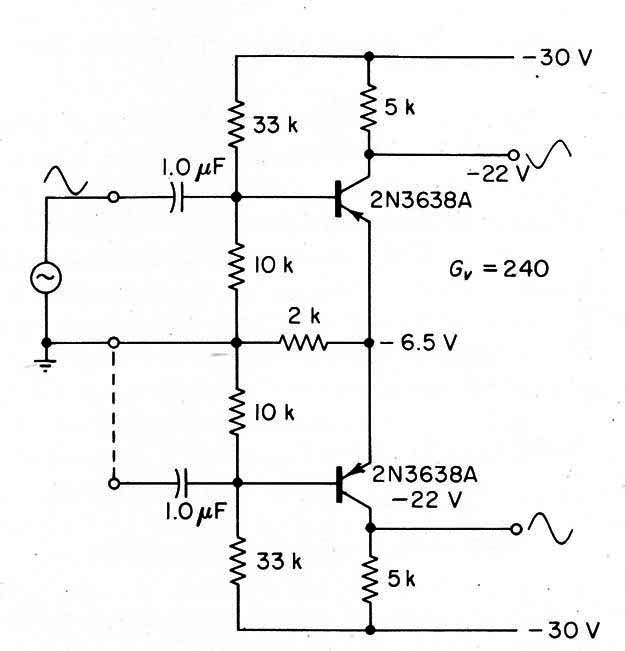

This circuit was found in and old documentation of 1958 and uses complementary germanium transistor. It can be used to drive simetrical output stages in audio amplifiers.
