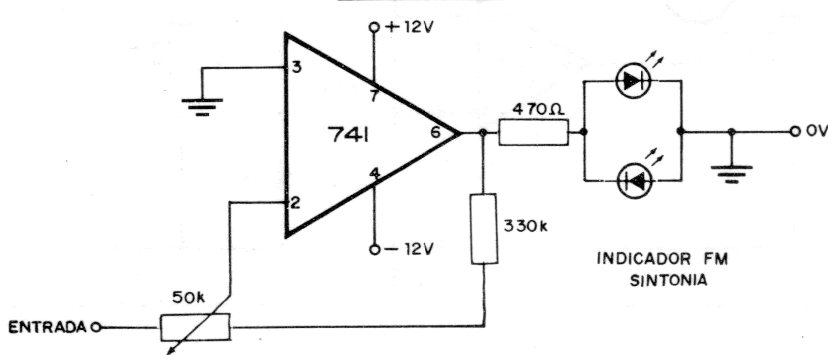

This circuit is based on an operational amplifier that is no longer common today but can be designed with equivalent operating systems. The circuit is from an old publication and is connected to the circuit discriminator. When tuning in to a station, the circuit indicates when the green LED lights up.
| Clique na imagem para ampliar |
