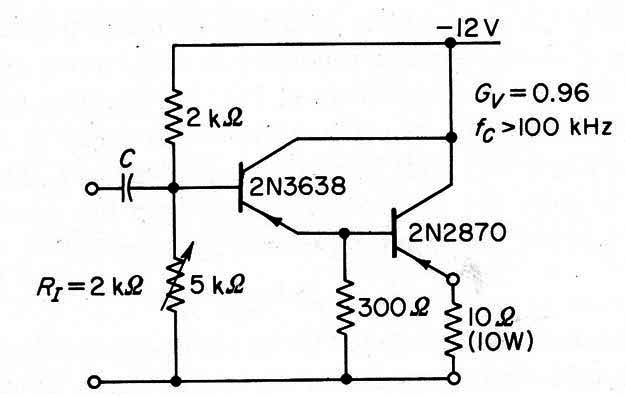

I found this circuit in a doc umentation from the year 1968. It uses germanium transistor and has a low voltage gain but a high current grai. Frequency range is up to 100 kHz e equivalent transistors can be used.
Darlington Amplifier Stage (CB974E)
- Details
- Written by: Newton C. Braga
