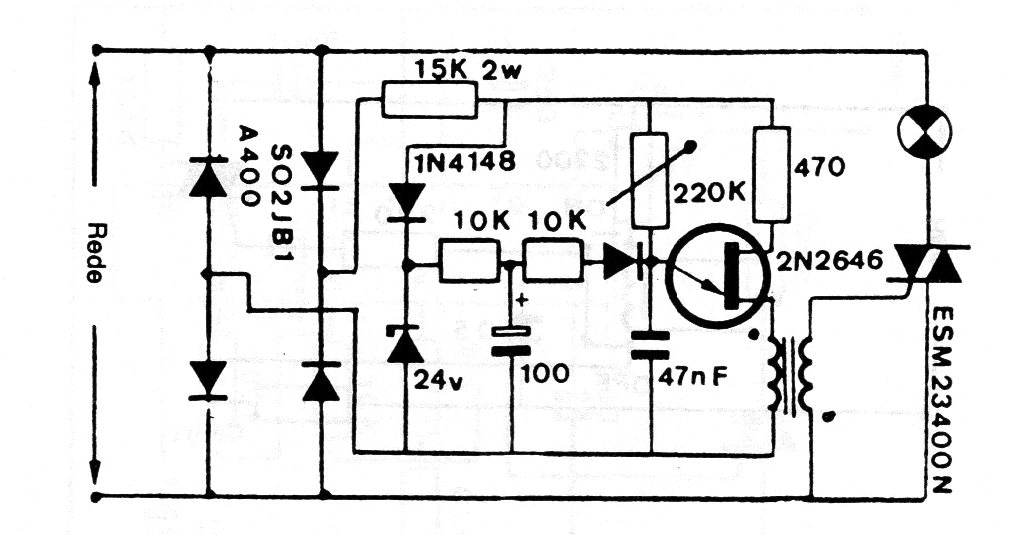

This circuit is from an old French publication. With it we can have full wave control of a charge (lamp, for example) using a unijunction transistor. The Triac is according to the controlled power and must be equipped with a heat sink.
| Clique na imagem para ampliar |
