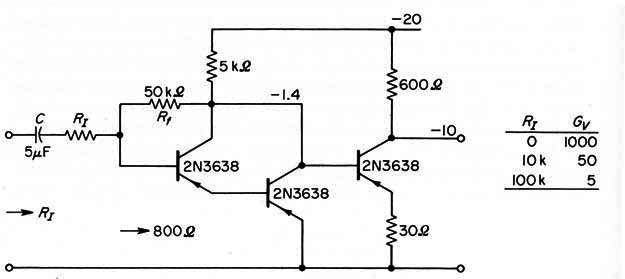

This circuit was found in a 1968’s publication and uses germanium transistors. The characteristic of the circuit is given by the formulas in the diagram. Equivalent transistors can be used including NPN inverting the polarity of the supply.
