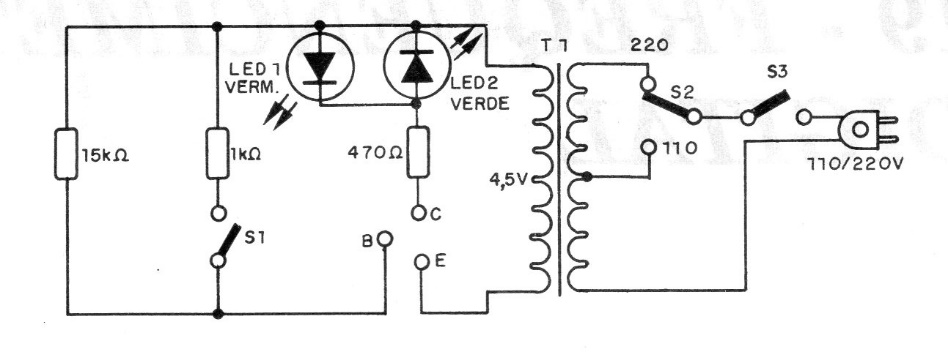

This simple circuit allows testing of general-purpose diodes and rectifiers and also general purpose, medium and power transistors. The circuit has two LEDs that indicate the status of the component.
| Clique na imagem para ampliar |
Transistor and Diode Test (CB16879E)
- Details
- Written by: Newton C. Braga
