Unijunction Bistable (CB16912E)

Details
Written by: Newton C. Braga

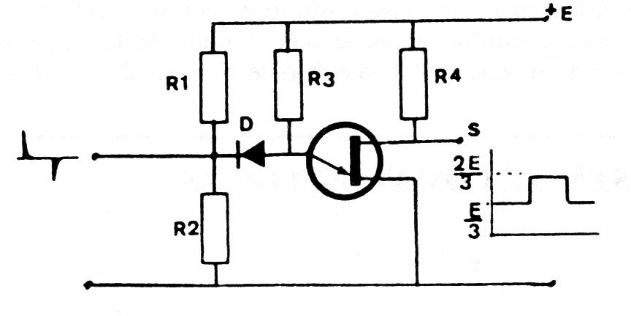

This circuit, from ancient French documentation, produces a rectangular pulse from input pulses applied to a unijunction transistor. The supply voltage must be from 6 V according to the desired output.
