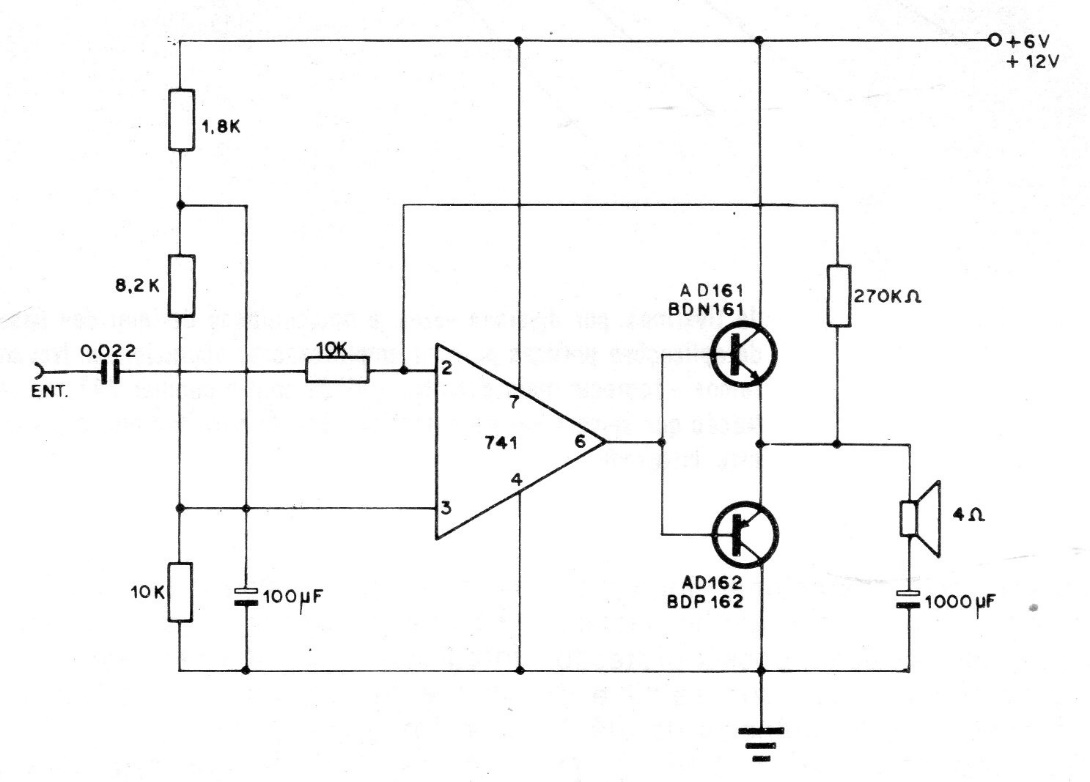

This is a traditional circuit in which a 741 operational amplifier is used as an audio amplifier with the gain given by the 270k feedback resistor. The power stage uses transistors that must be mounted on heatsinks. The circuit can be powered by voltages from 6 to 12 V.
