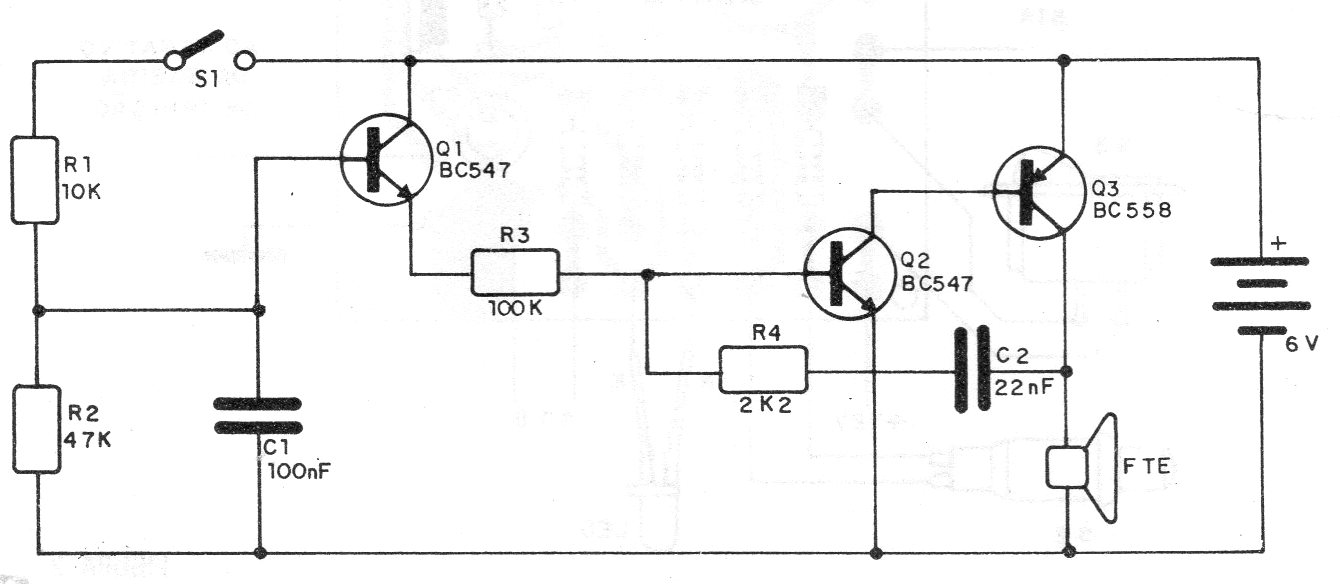

This siren circuit was found in 1987. The components are common, and power is provided by standard batteries. Resistors R1, R2 and capacitor C1 determine the effect. The sound produced is increasing when we close S1 and decreasing when we open it.
