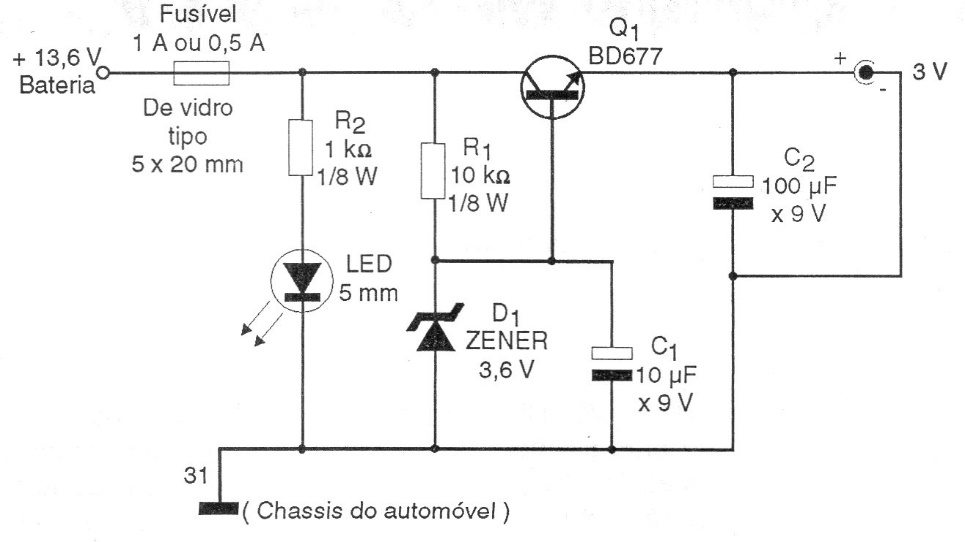

In the year of this project (1997) Walkman were common, but this unit can be used in the car with other applications that work with 3 V. The maximum current is in the order of 500 mA and the output voltage is fixed by the zener diode. Other stresses can be obtained by changing this component.
