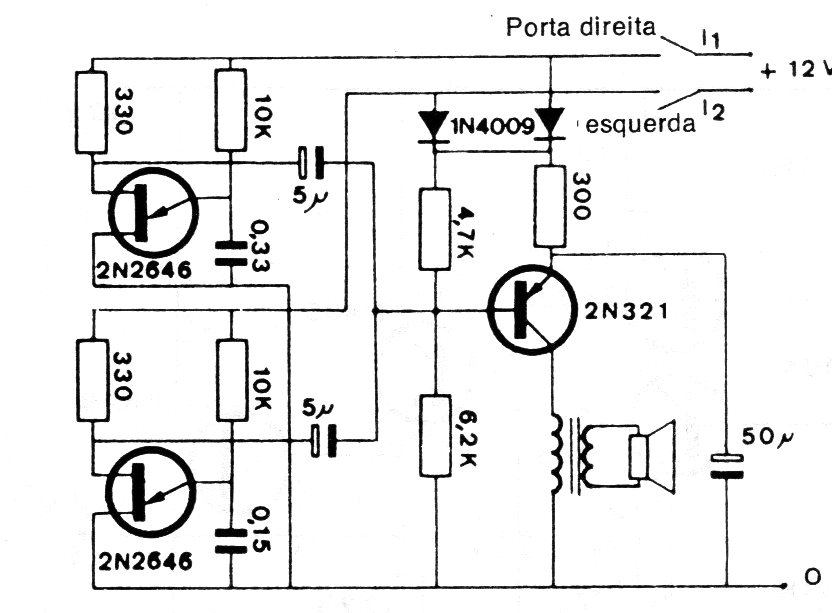

This circuit uses unijunction transistors and drives a small speaker through an output transformer. The circuit uses signals from the door switches of the protected vehicle. The transistors are 2N2646 and the bipolar can be BC548. The transformer is a 50 to 200 ohms primary impedance type.
