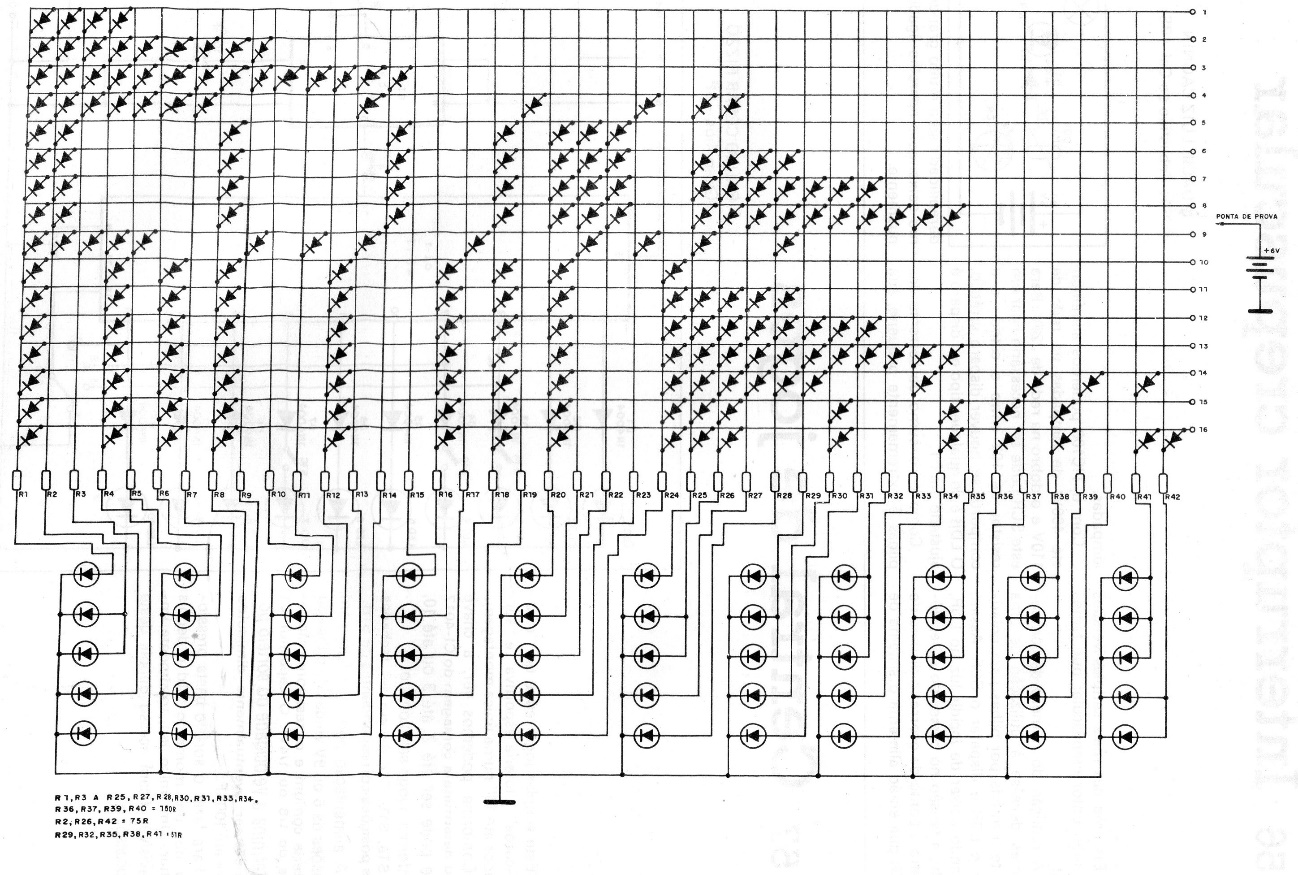

This interesting circuit is from a 1988 documentation. It is a matrix of diodes that converts sequential digital signals into signals for an LED display. The display will then show the corresponding signs in the form of Roman numerals.
