Logic Level Indicator (CB16497E)

Details
Written by: Newton C. Braga

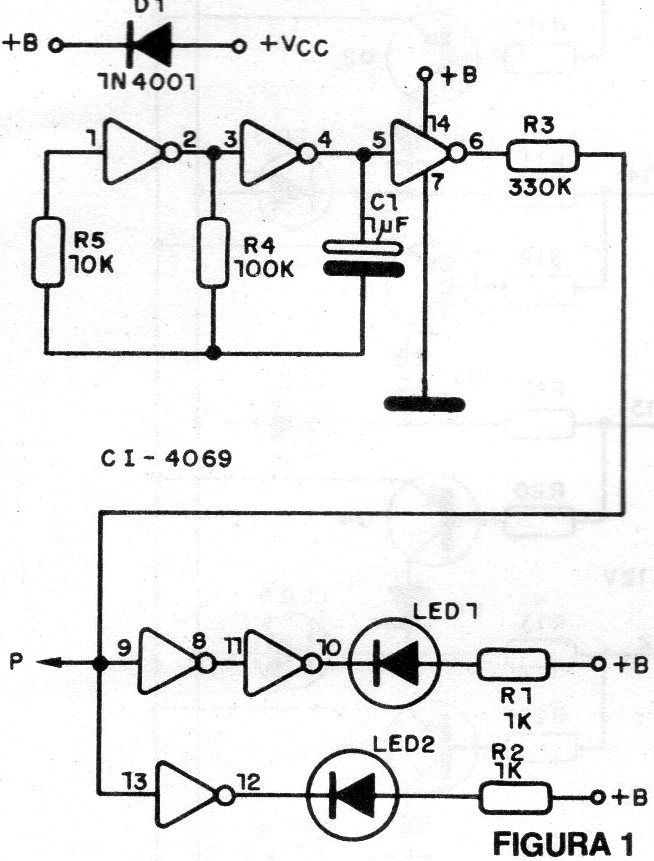

This circuit uses CMOS integrated circuits and can operate with CMOS logic from 3 to 15 V or TTL with 5 V power. The power is obtained from the circuit under analysis.




| Clique na imagem para ampliar |
