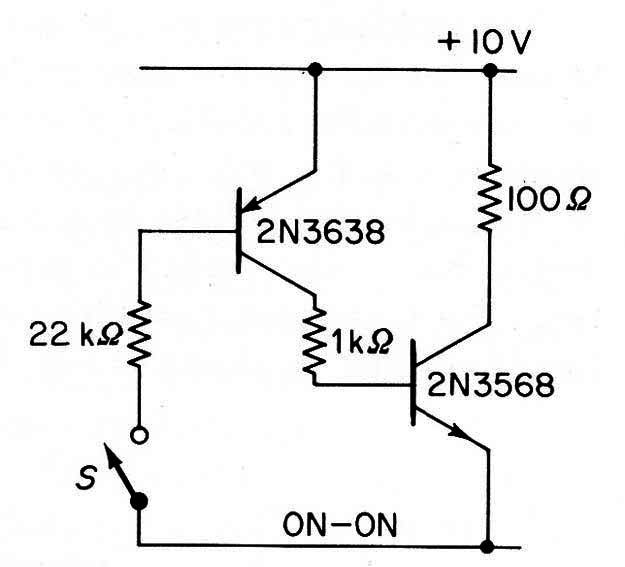

This circuit was found in a publication of the year 1968. It uses complementary transistor to drive a load such as a relay, motor, or solenoid. The circuit can be powered from 9 to 12 V supplies and can be used as shield. The control signal can be applied to the 22 k ohm resistor.
