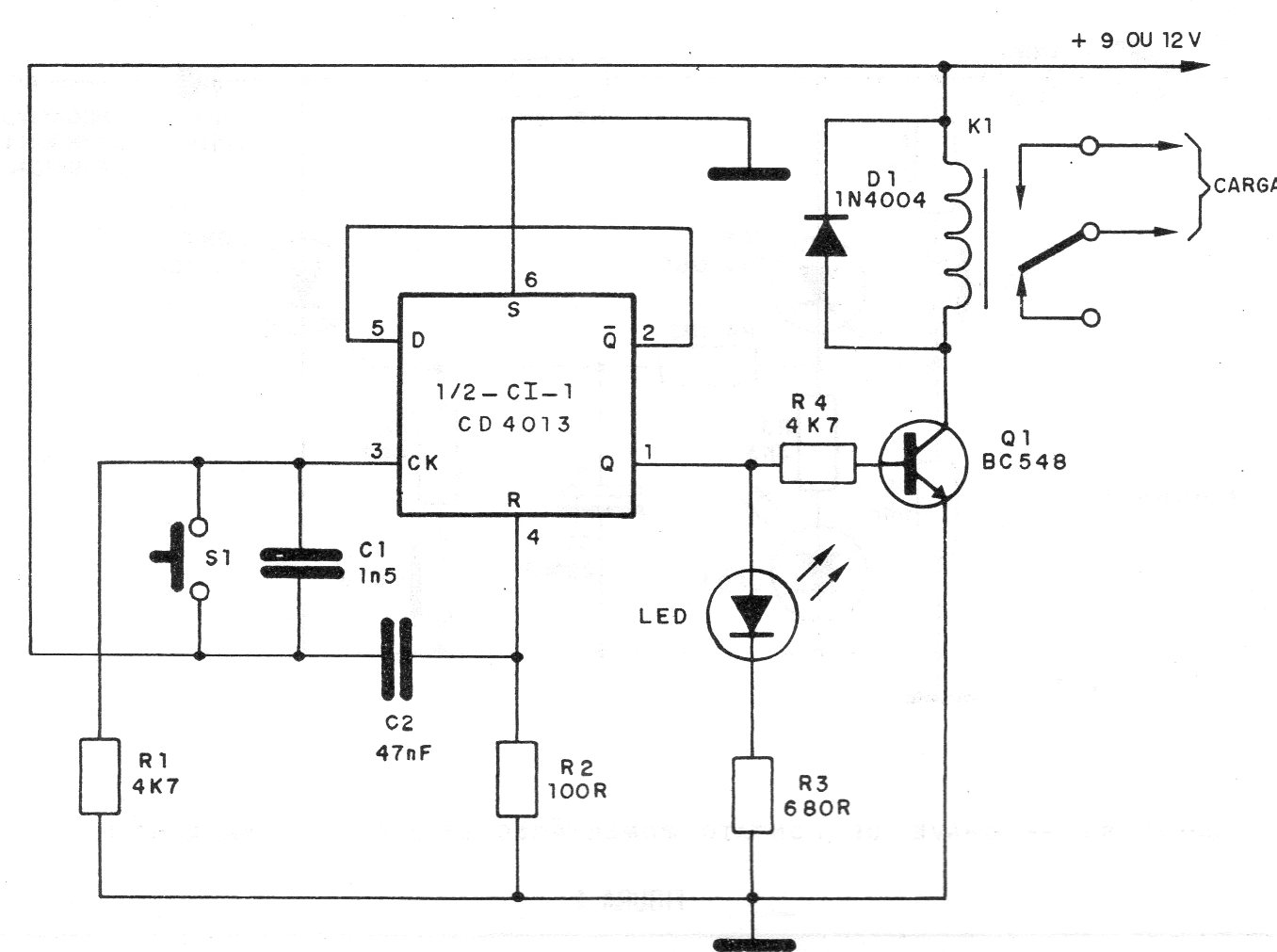

This bistable touch circuit using CMOS technology controls a relay. The supply voltage must be equal to that of the relay. The controlled load depends on the relay contacts. The circuit is from old documentation.
| Clique na imagem para ampliar |
Digital CMOS Switch (CB16601E)
- Details
- Written by: Newton C. Braga
