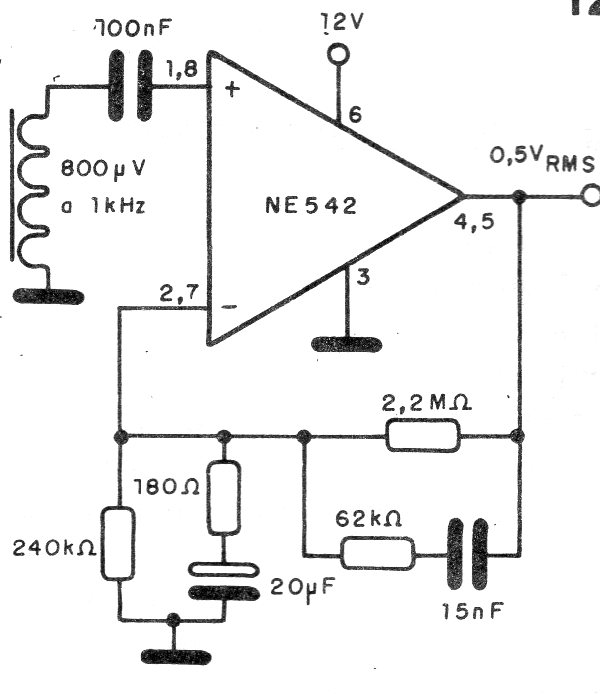

This old circuit, from a 1992 documentation, was used with tape recorders acting as playback. The circuit uses an unusual integrated today, but it can be assembled with equivalents for other purposes. Power comes from a simple 12 V power supply.
Playback Amplifier (CB16673E)
- Details
- Written by: Newton C. Braga
