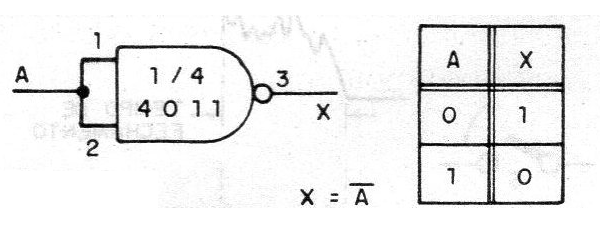

Joining the two inputs, with the 4011 we form a simple inverter as shown in the figure. The truth table shows that the output level will always be the opposite of the input level. The circuit supply, as already mentioned, can be between 3 and 15V.
Inverter 4011 (CB16065E)
