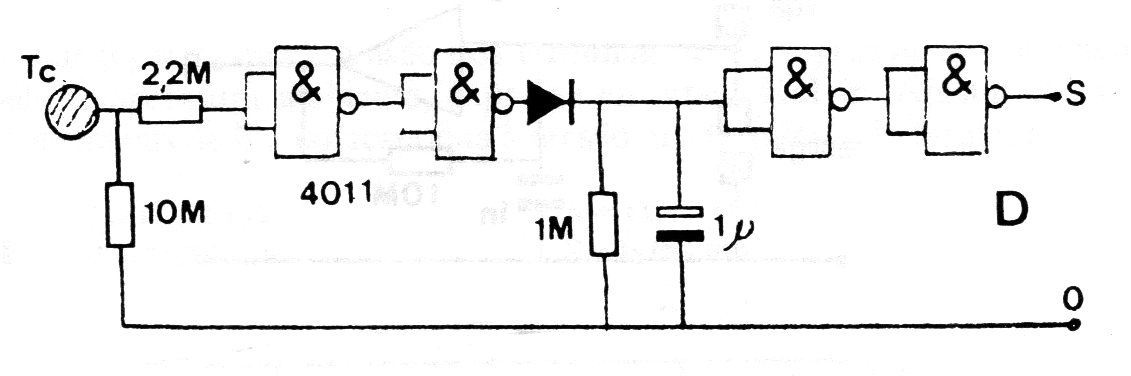

The touch sensor of this circuit consists of a single plate that must be touched to obtain an output. The circuit uses the noise captured by the body and uses it to activate the circuit after a detection made by the diode. The circuit can be used as an input shield when powered by a voltage of 5 V.
