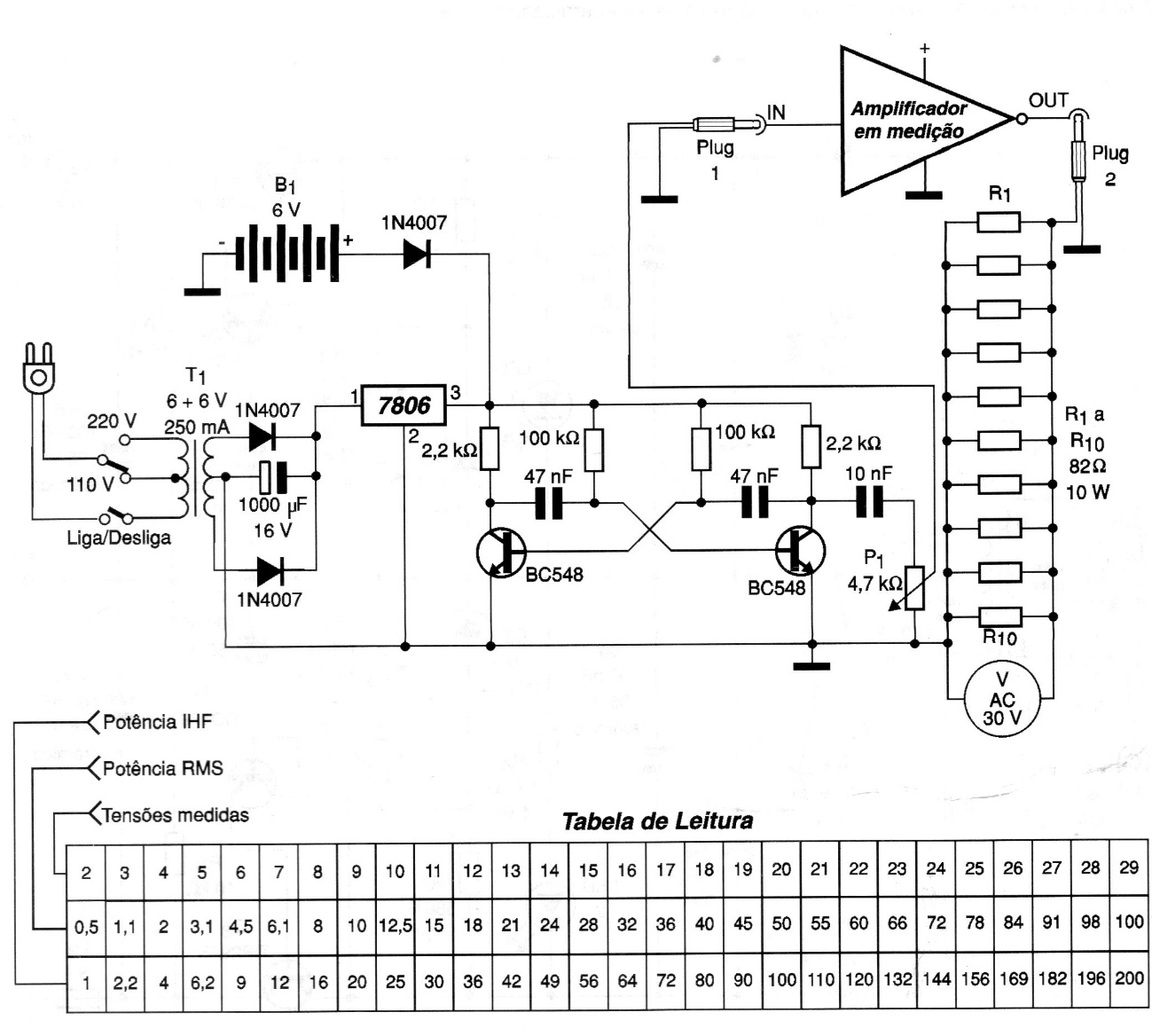

This circuit is from 2002 documentation. It injects a signal into a power amplifier and measures the voltage obtained at the output with the reference signal. With this, an AC voltmeter or multimeter can be used to determine the output power. The amplifier must have the volume open and the P1 calibration must be done based on the table.
