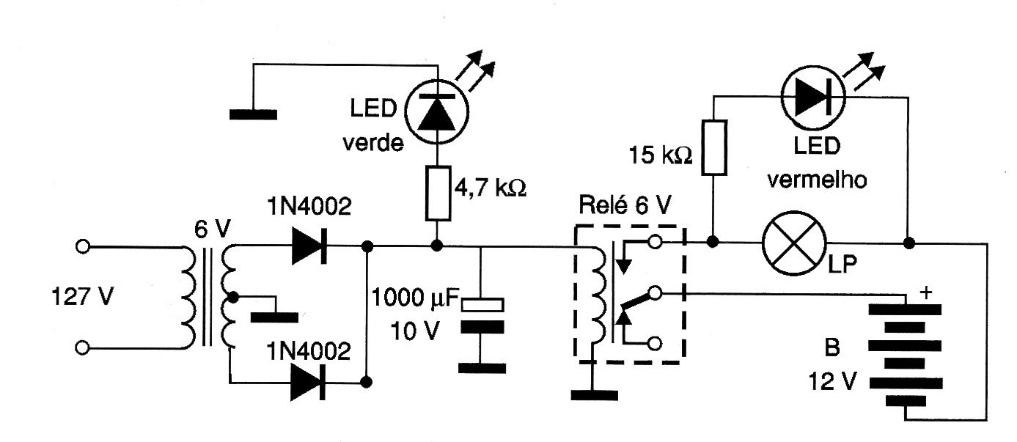

This simple circuit, from a 2006 documentation, activates a 12 V lamp in the event of a power failure. In a modern version the lamp can be made of high-brightness white LEDs for 12 V. The battery does not have a recharge system in this project.
