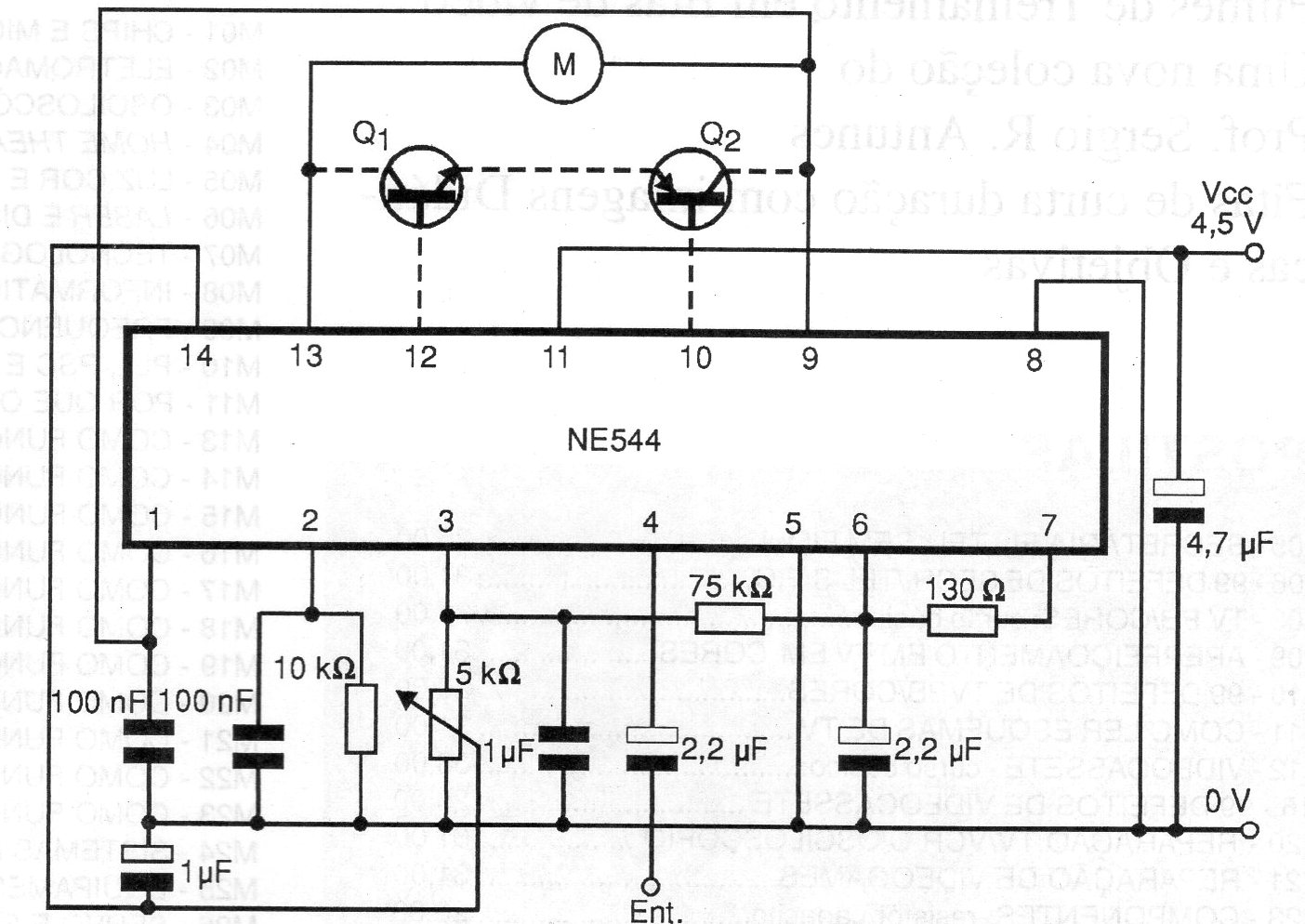

This circuit is from 1999 documentation. The integrated circuit used is not very common today. Both transistors are used if the motor current is greater than 500 mA.
| Clique na imagem para ampliar |
Servo Amplifier (CB17167E)
- Details
- Written by: Newton C. Braga
