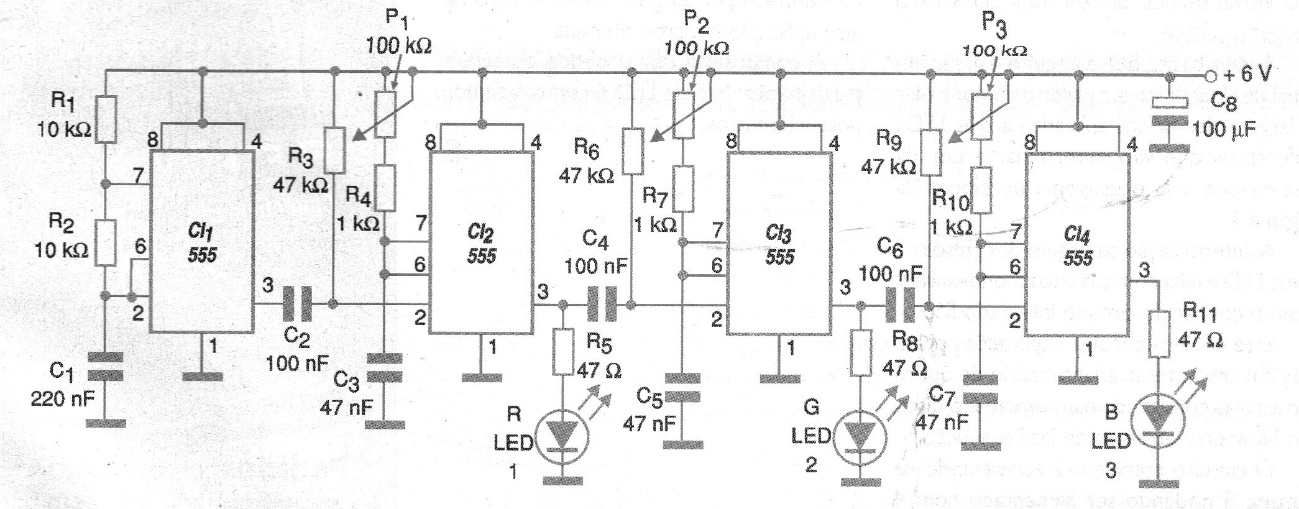

With this circuit, three LEDs of different colors can be controlled sequentially. Adjustments of the operating times of each LED are made by the trimpots. The resistors in series with the LEDs depend on the desired current and can be between 47 ohms and 1k.
