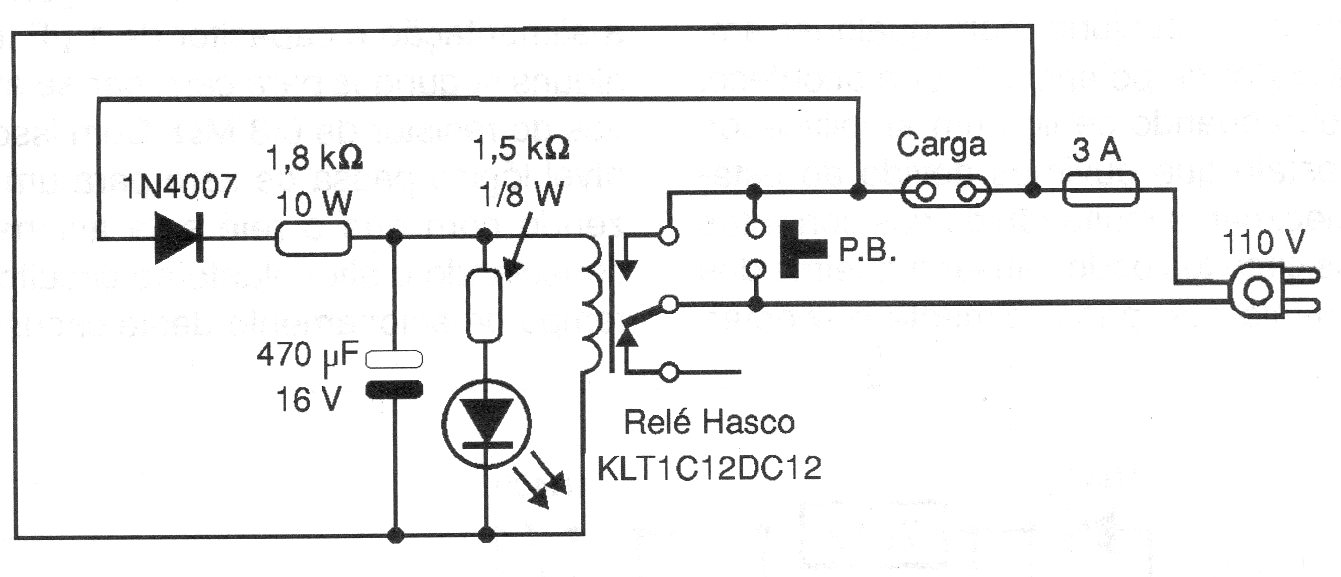

This circuit, from 1999 documentation, prevents the powered device from receiving power when it returns after a cut, which can cause problems if the device is sensitive to transients. The circuit uses a common relay that must have contacts according to the current drained by the protected device. The reset is done by pressing PB for an instant.
