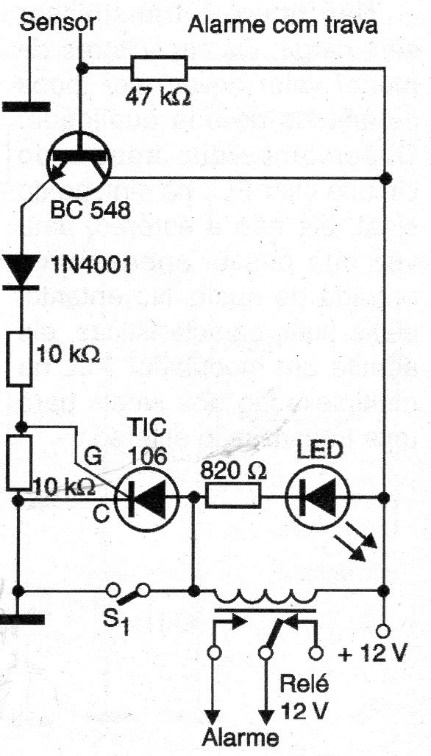

This circuit, when triggered, locks, and remains so until the source is switched off for a moment or S1 closed and then opened. The circuit controls a 12 V relay and must be powered by this voltage.
Simple Locked Alarm (CB18097E)
- Details
- Written by: Newton C. Braga
