20 MHz Oscillator (CB17506E)

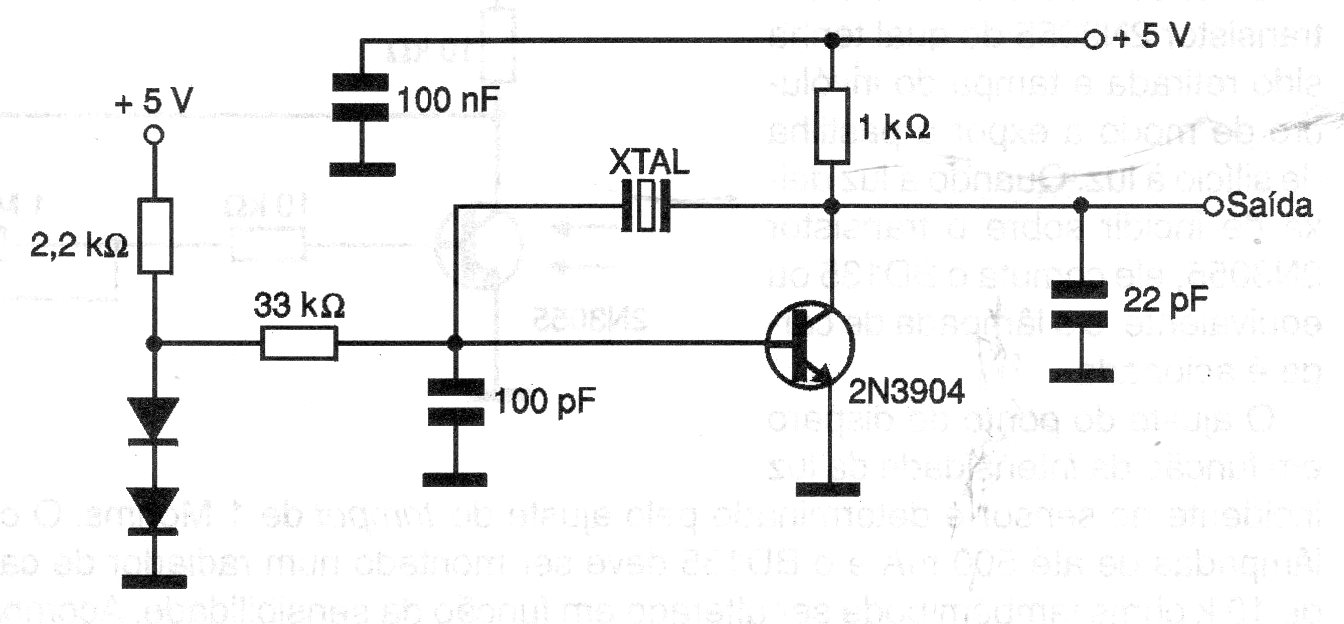

This crystal oscillator generates a 20 MHz signal. Equivalent transistors such as BF494 and 2N2222 can be used. The stabilizing diodes can be 1N4148.
