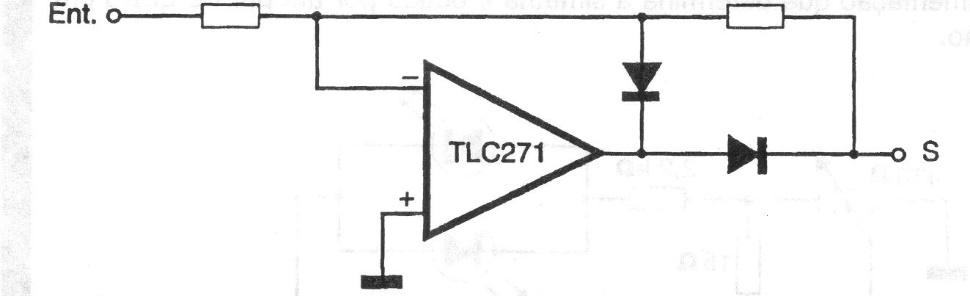

In the figure we show how the half wave rectification of a signal can be done using an operational amplifier. The resistor values depend on the signal strength and the desired gain. Equivalent operational amplifiers can be used.
