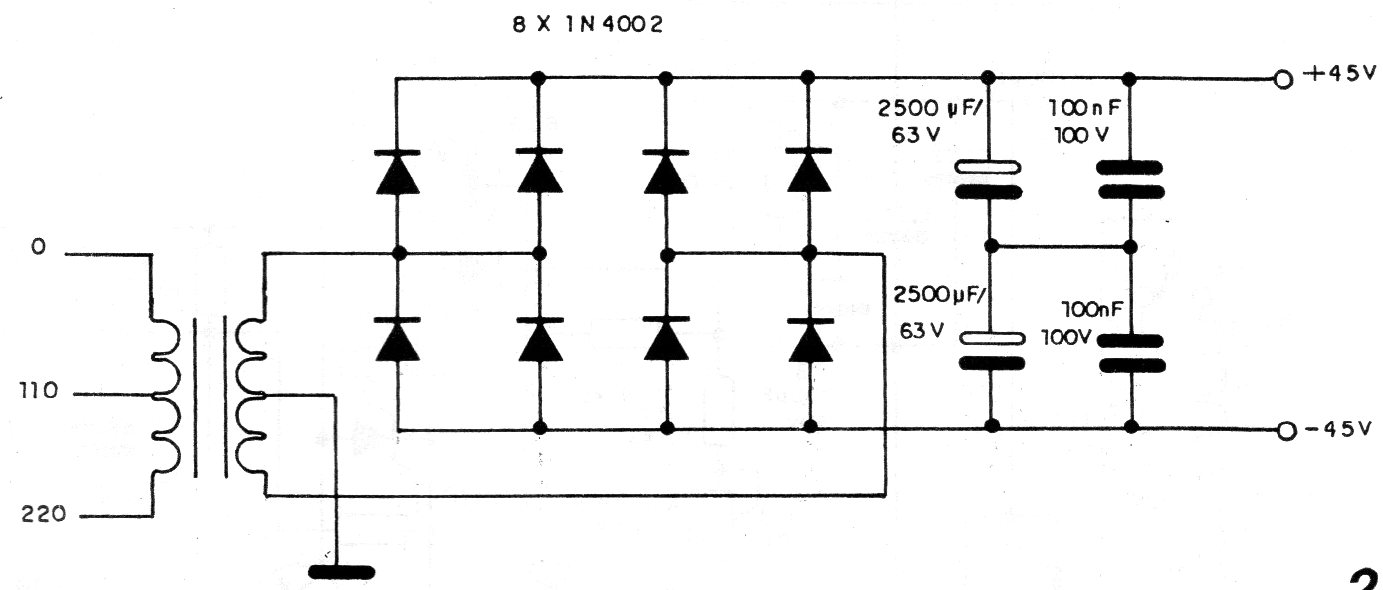

This power supply was originally designed to power a 260 W amplifier (CB17064E) delivering 45 V symmetrical with a maximum current of 5 A. The transformer has a secondary winding of 32 + 32 V with 5 A. It is recommended to use diodes 1N5404 instead originals for added security.
| Clique na imagem para ampliar |
