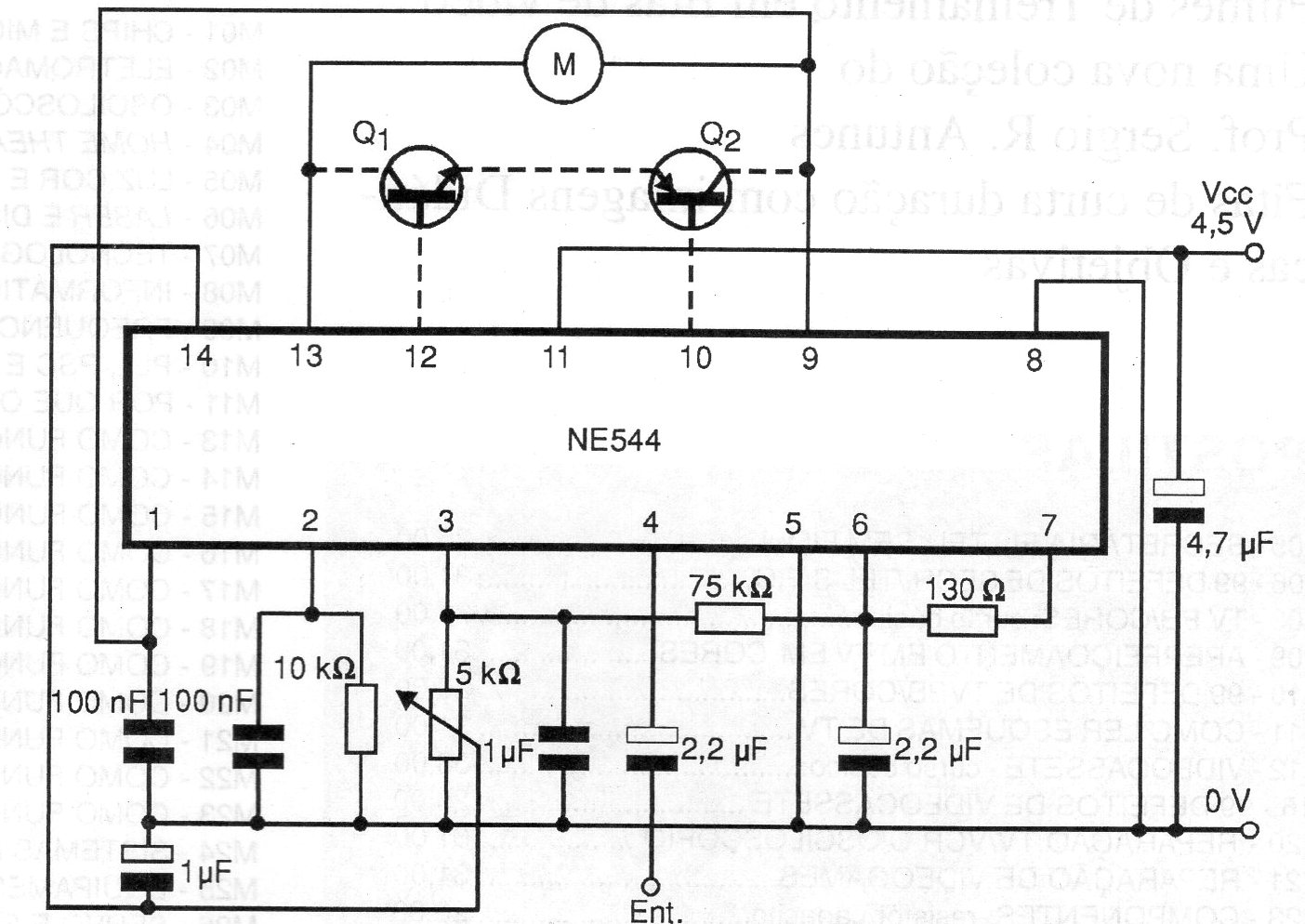

Servo Amplifier (CB17166E)

Details
Written by: Newton C. Braga



This circuit is from 1999 documentation. The integrated circuit used is not very common today. Both transistors are used if the motor current is greater than 500 mA.




| Clique na imagem para ampliar |
