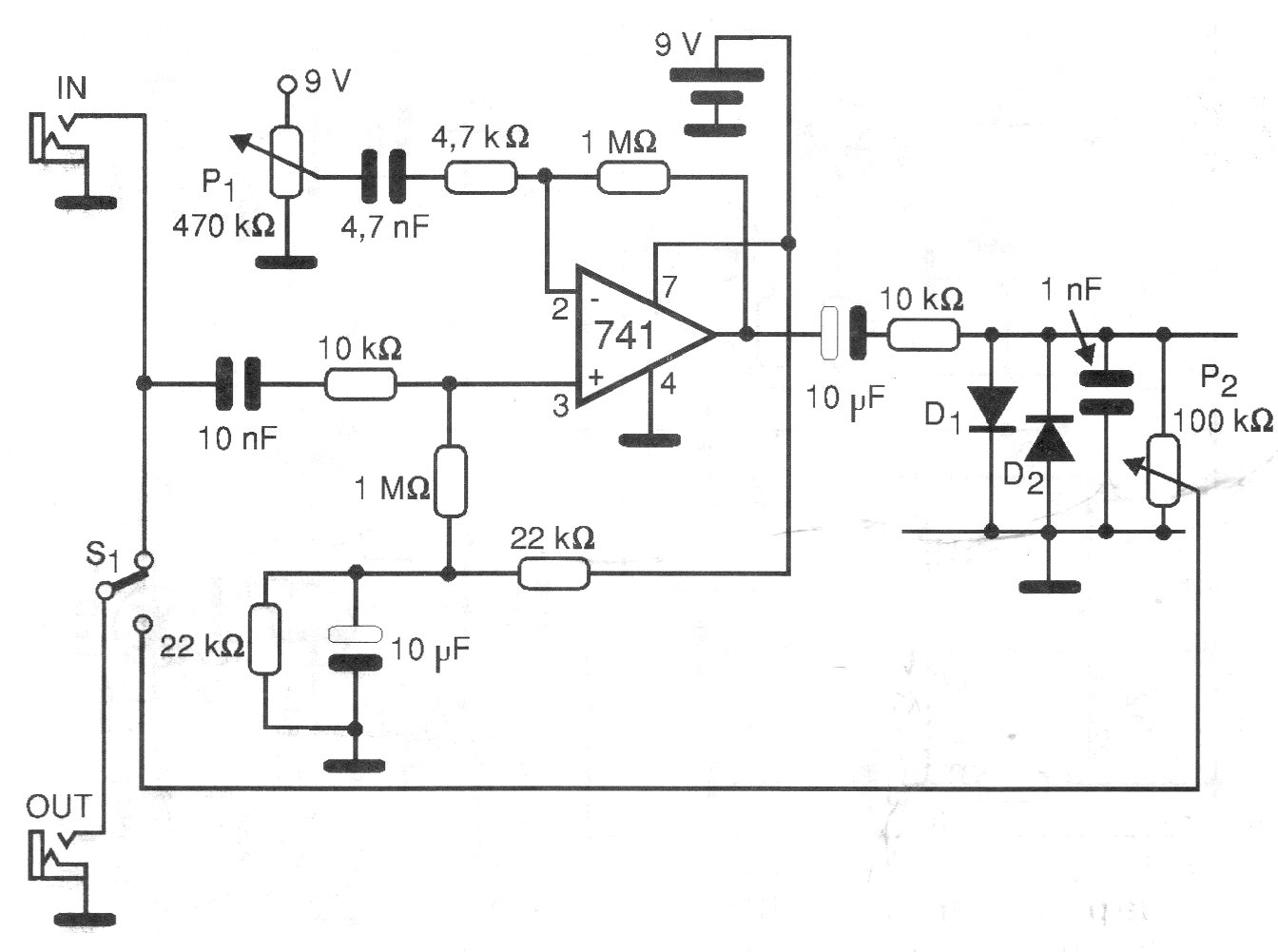

This simple circuit of effects is interspersed between the instrument and the amplifier. It is powered by a 9 V battery to minimize the effect of noise and the input and output cables must be shielded.
| Clique na imagem para ampliar |
Heavy Metal Effect Pedal (CB17468E)
- Details
- Written by: Newton C. Braga
