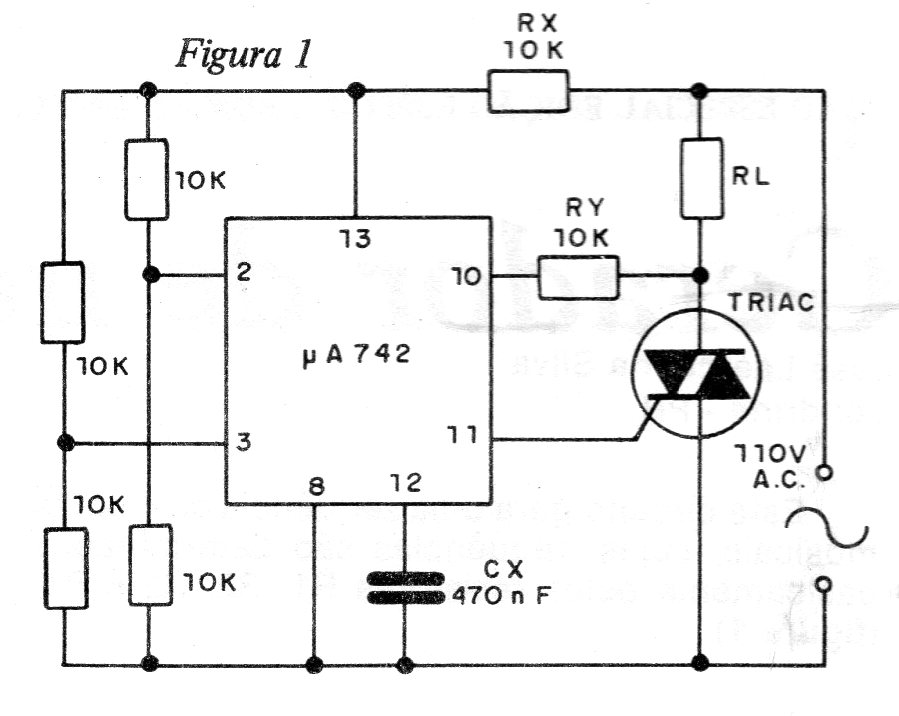

This triac phase control circuit uses an integrated circuit not very common today. We found this application in a 1986 documentation. The Triac must be equipped with a heat sink and have a current according to the controlled RL load.
| Clique na imagem para ampliar |
