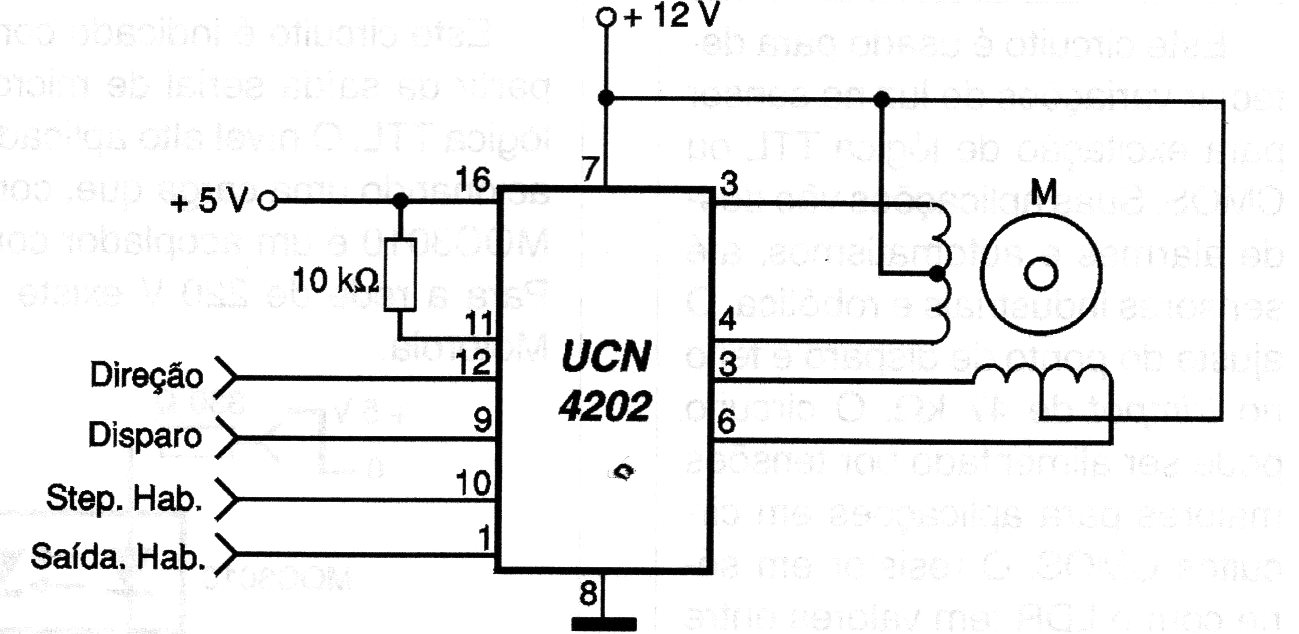

This circuit can be used as a shield for the control of stepper motors from microcontrollers. The circuit has a TTL compatible input with two supplies, one for logic and the other for the motor which can have a maximum current of 1 A.
| Clique na imagem para ampliar |
