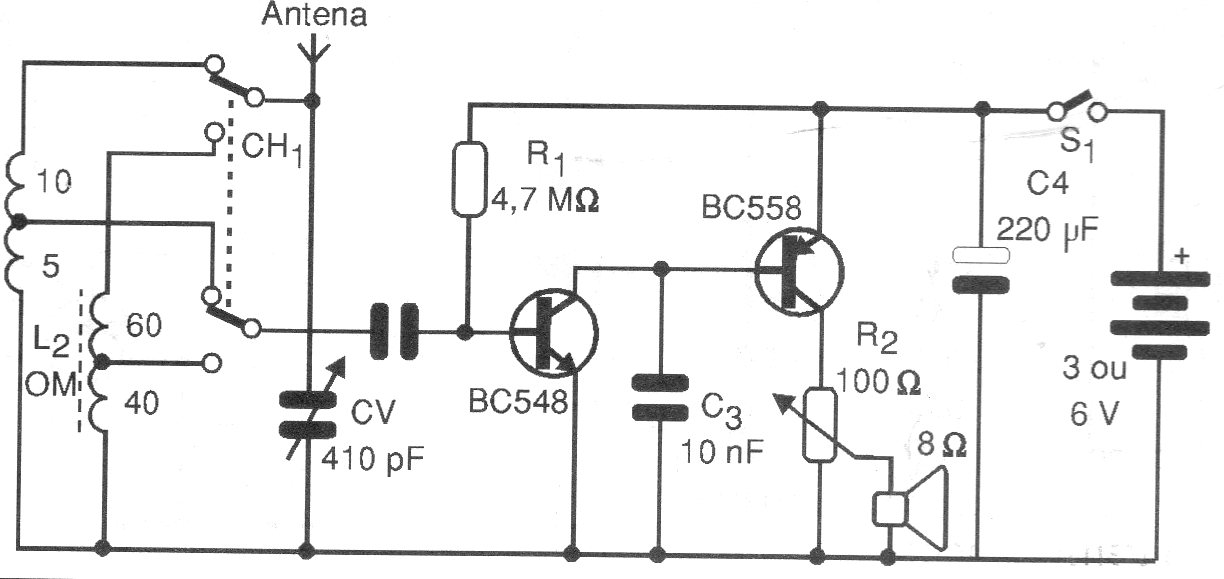

This simple experimental circuit, with a good external antenna can capture distant stations in the short and medium wave range. The coils are wound with 26 or 28 wire in ferrite rods with the number of turns indicated in the diagram.
