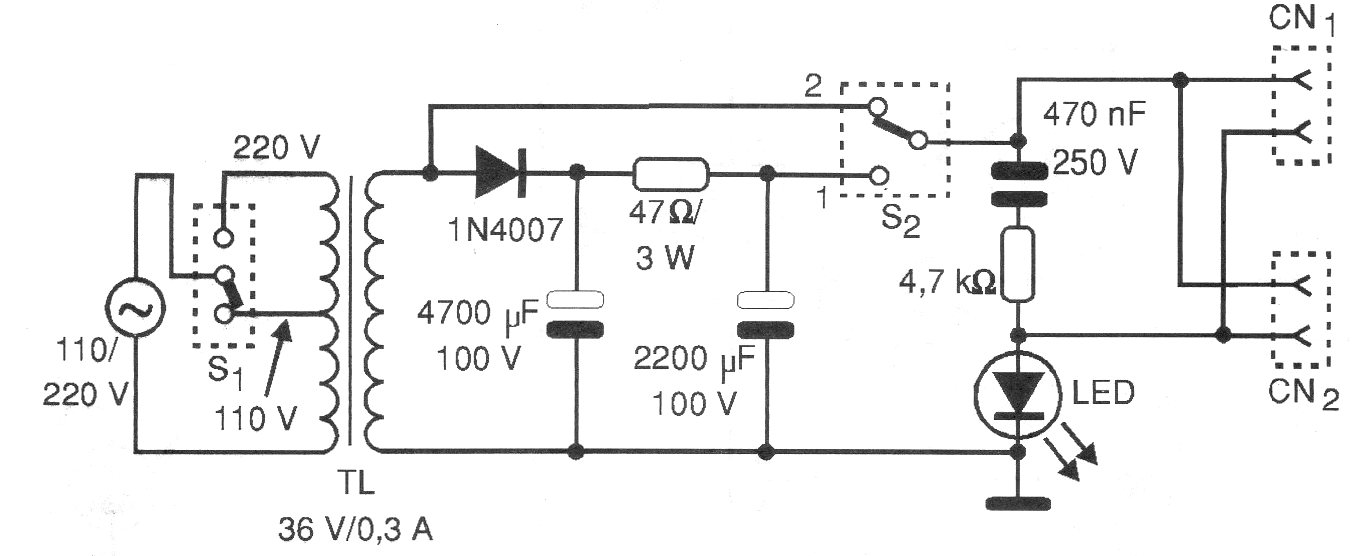

With this simple circuit it is possible to simulate a telephone line for carrying out repairs on telephone sets. The transformer must be 36 V and the diode can also be 1N4004.
| Clique na imagem para ampliar |
Telephone Line Simulator (CB17467E)
- Details
- Written by: Newton C. Braga
