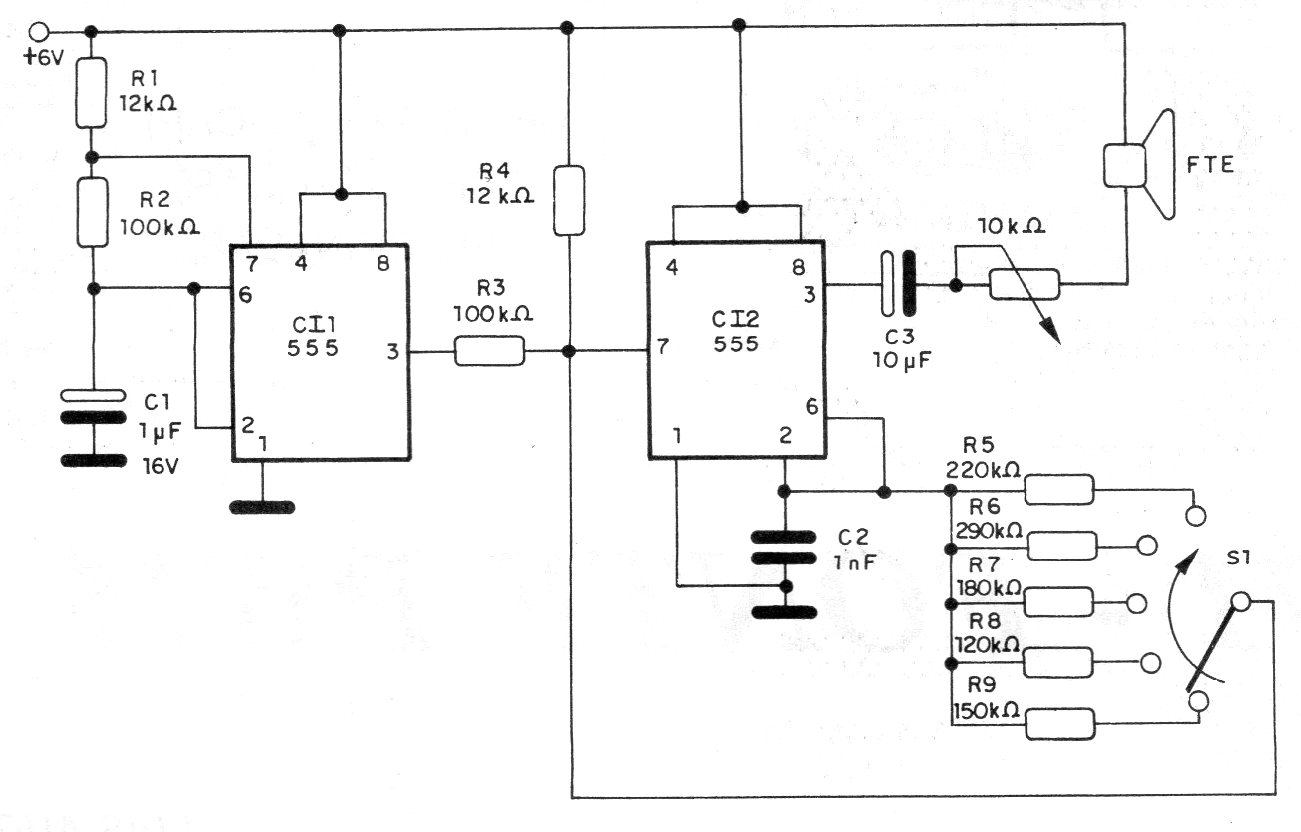

This circuit generates 5 different tones selectable by switch S1. Separate pressure switches can be used to trigger different tones from 5 points. The circuit is from 1995 documentation and is powered by a 6 V power supply or batteries. The circuit has a low-power speaker, but an external amplifier circuit can be used.
| Clique na imagem para ampliar |
