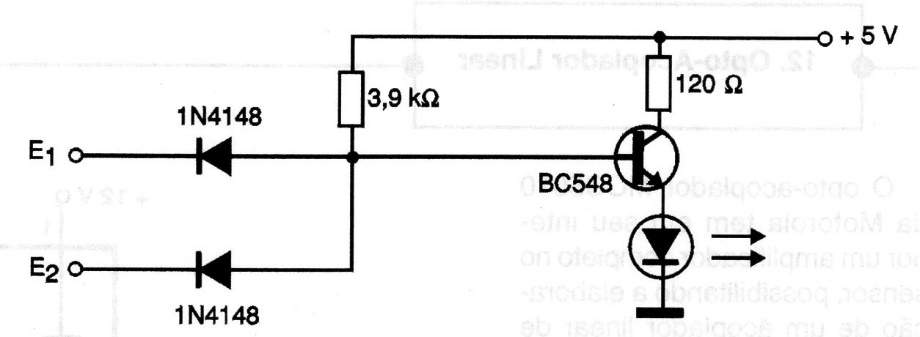

With this shield circuit, you can control LEDs from an AND gate or microcontroller. When both inputs are at the high level, the LED lights up. When any one is low, the LED goes out. The circuit can be used as a logic control shield.
