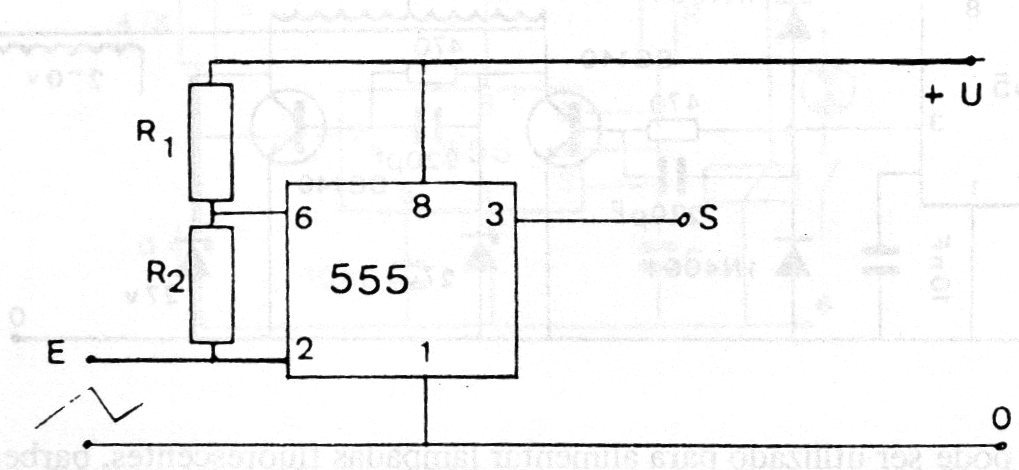

We can use the trigger point of 555 to detect voltage levels or thresholds, in a circuit as shown in the figure. The resistor values depend on the voltage to be detected and the power must also be chosen according to the application.
