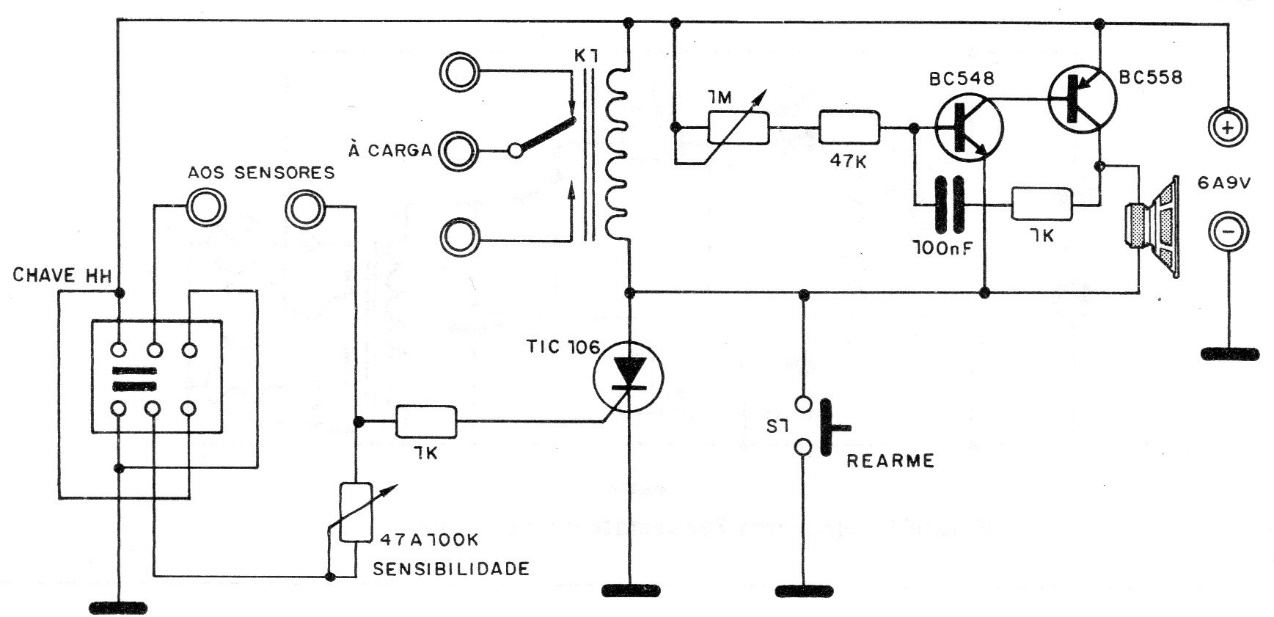

We found this simple alarm circuit in a 1986 documentation. The circuit uses sensors of the NA type in any quantity connected in parallel. The SCR acts directly on the relay and it already has a power oscillator.
| Clique na imagem para ampliar |
Multipurpose Alarm (CB17301E)
- Details
- Written by: Newton C. Braga
