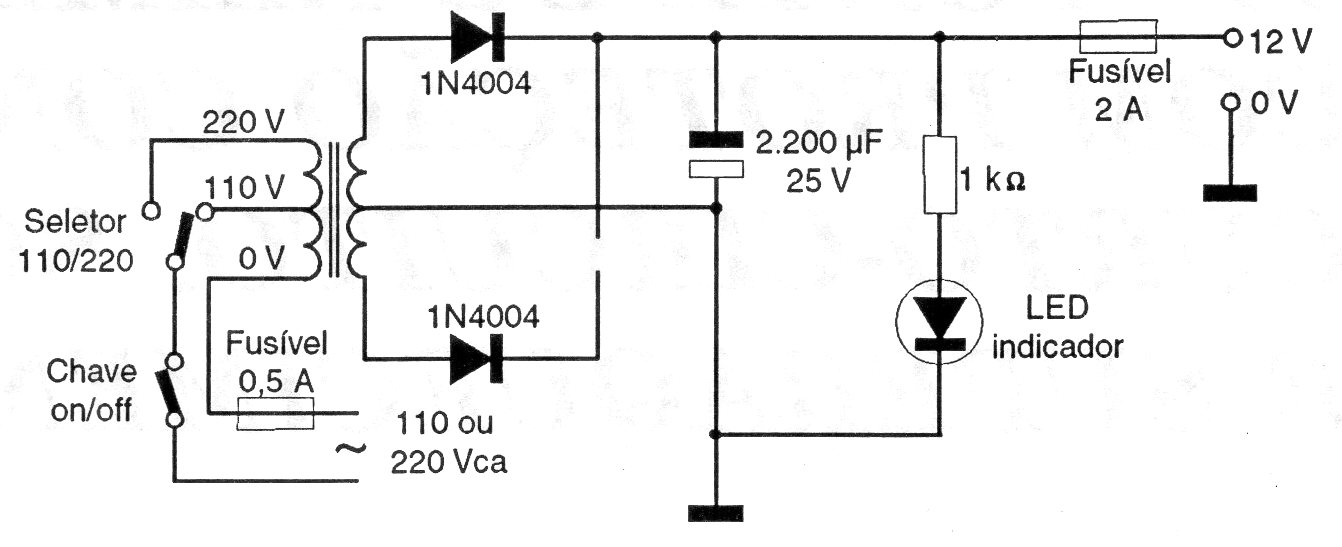

This power supply was originally developed for the CIR10160, but can be used with other VHV (Very High Voltage) generators that require currents up to 1.5 A. The transformer is 12 or 15 V with 1.5 A and the circuit does not need adjustment. An input fuse is important as a protection element and in series with the output.
