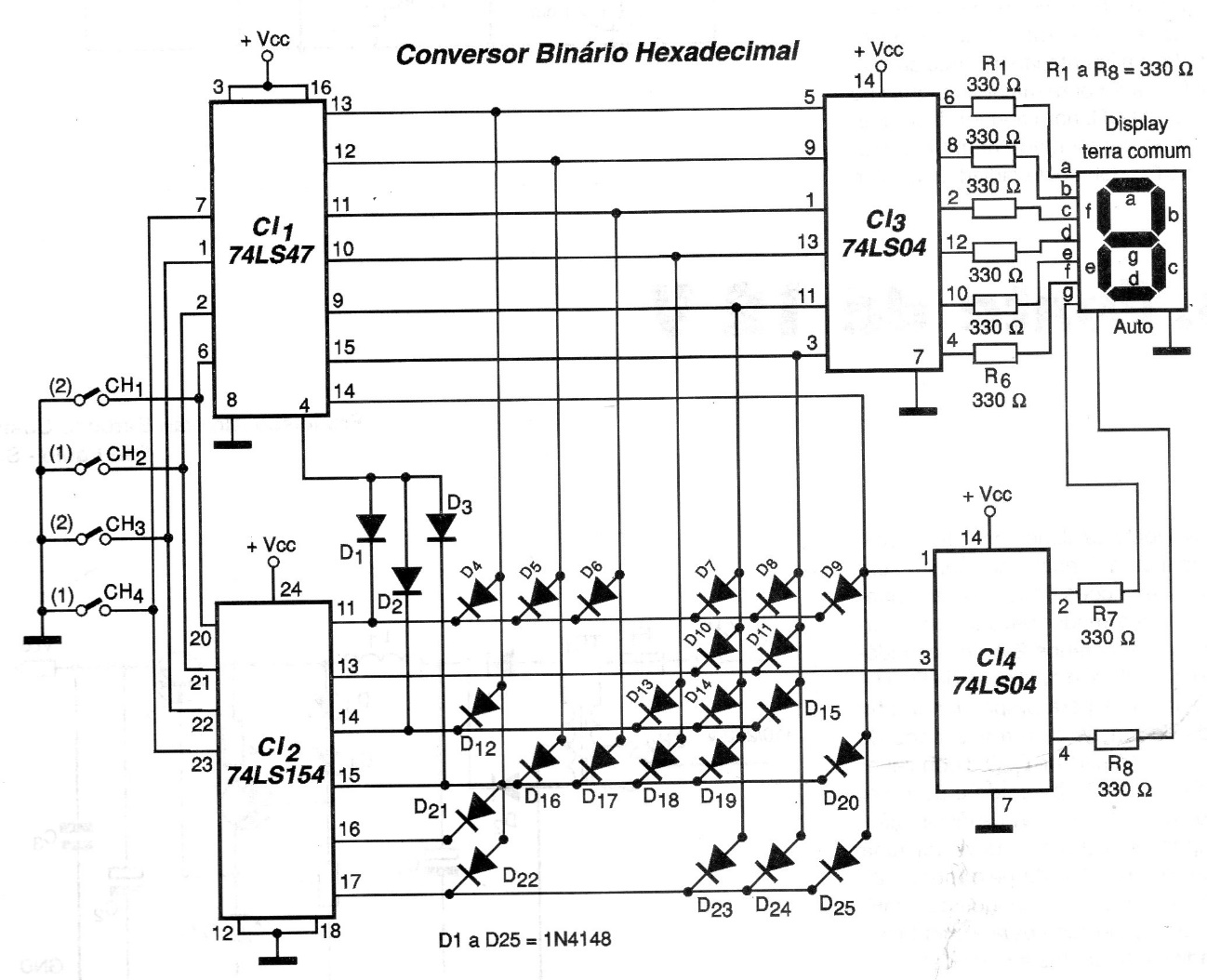

This circuit from a 2001 publication converts binary values programmed in 4 keys into hexadecimal values presented on a 7-segment common cathode display. The circuit must be powered by 5 V since it uses TTL, and the diodes admit equivalents.
| Clique na imagem para ampliar |
