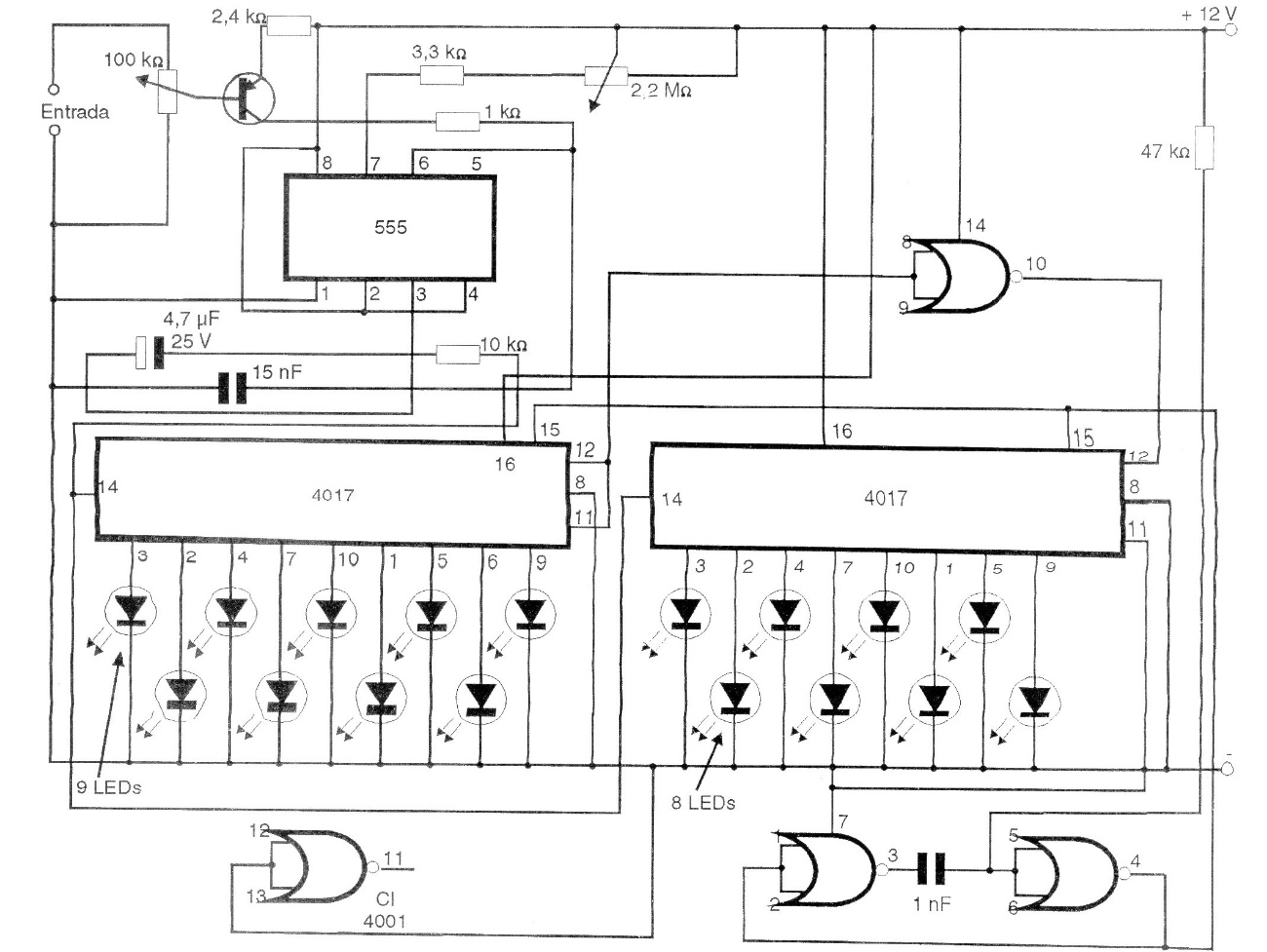

This circuit indicates the volume of an audio signal in a different way. The circuit is from 1997 documentation and is very simple to assemble, due to the components it uses. The trigger level is adjusted in the trimpots.
| Clique na imagem para ampliar |
