Soldering Iron LED Indicator (CB17055E)

Details
Written by: Newton C. Braga

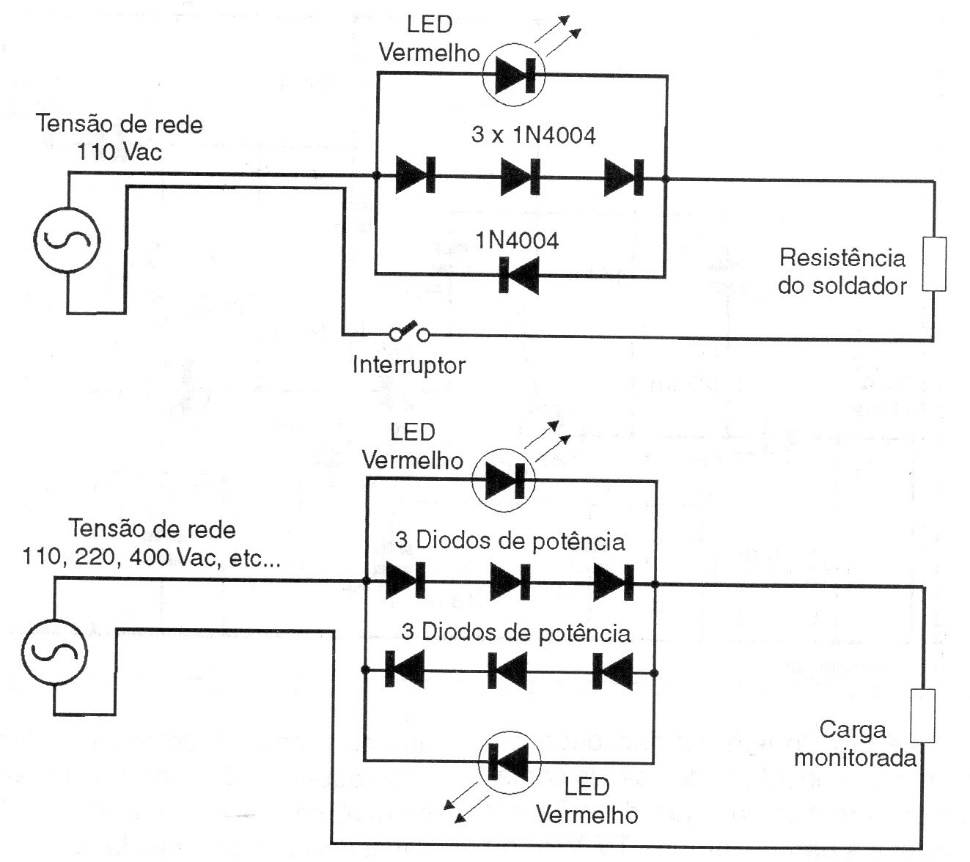

This simple indicator circuit, in two versions, was found in a 1997 documentation. In the original there is no limiter for the LEDs. We recommend using a 1k resistor in series with each one.




| Clique na imagem para ampliar |
