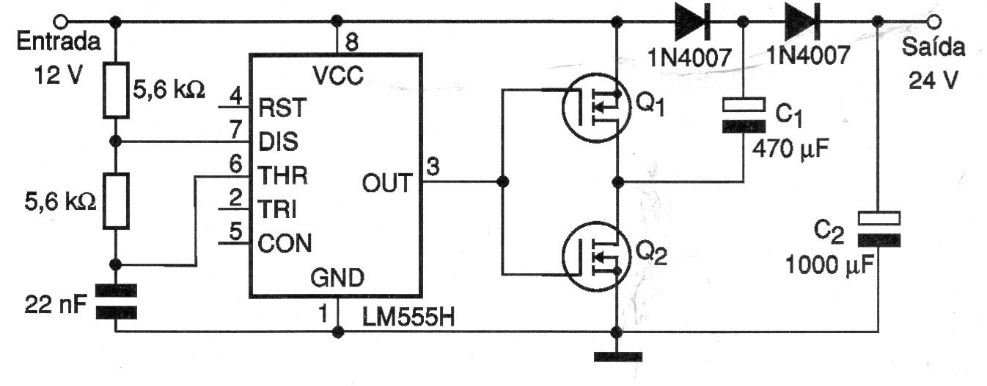

This circuit has a good performance in converting 12 V to 24 V. The circuit uses two power FETs, which allows to obtain a good output current. We found this configuration in a 2006 documentation.
| Clique na imagem para ampliar |
12 to 24 V Doubler (CB18125E)
