Square Oscillator LM3900 (CB17389E)

Details
Written by: Newton C. Braga

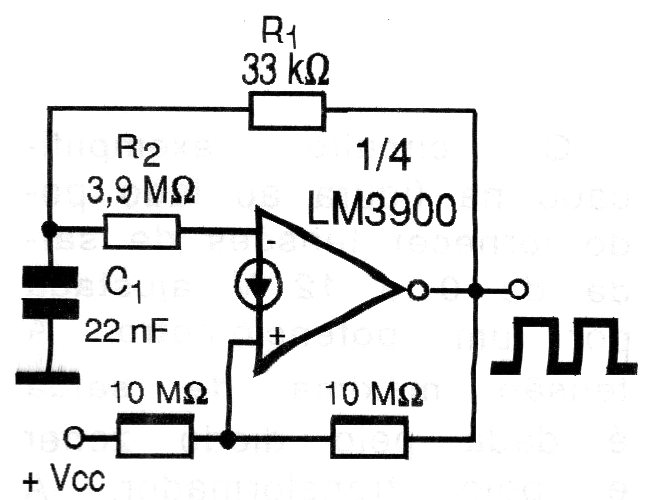

This configuration can be found in other articles in this section. This was obtained in a 2000 documentation and the supply can be made with voltages from 3 to 12 V. Only one of the LM3900 amplifiers was used.




| Clique na imagem para ampliar |
