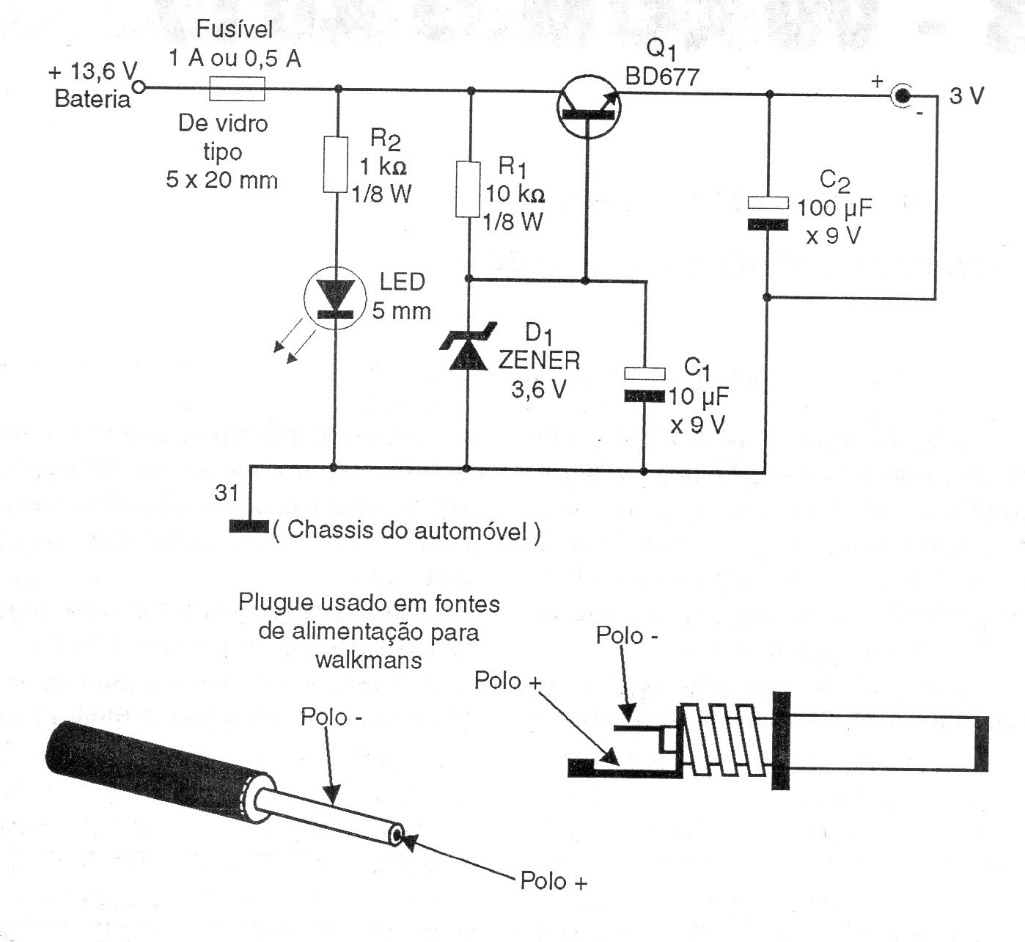

This unit is intended to power 2 AA or AAA battery powered applications from the car battery, using the existing 13.6 V outlet. The maximum current is in the order of 500 mA and the transistor must be mounted on a small heat sink. The zener determines the output voltage.
