Transmitter 9V Power Supply (CB17496E)

Details
Written by: Newton C. Braga

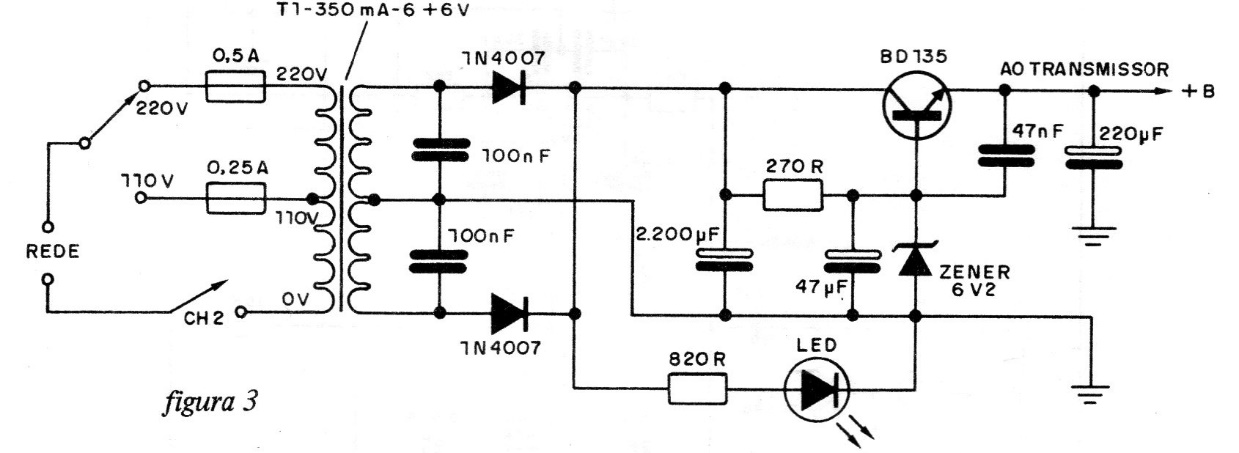

This circuit is indicated for supplying the CB17495E transmitter. The BD135 must have a small heat radiator and the zener may eventually have a higher voltage.
