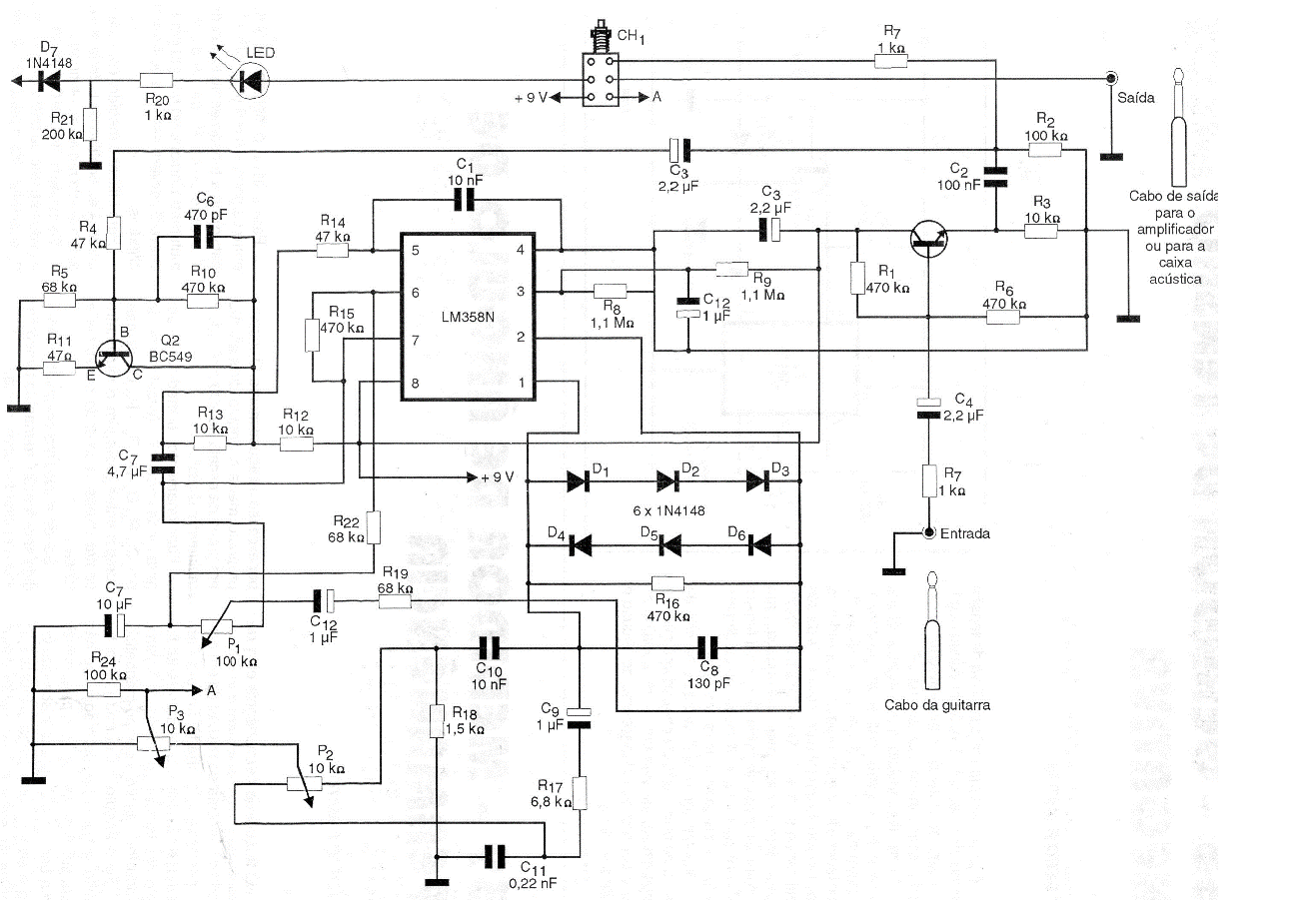

We found this guitar effects circuit in a 1997 documentation. As the components used are still common today, except for the integrated circuit that may present some difficulty in obtaining it, its assembly is feasible, remembering that the signal input and output cables must be shielded.
| Clique na imagem para ampliar |
